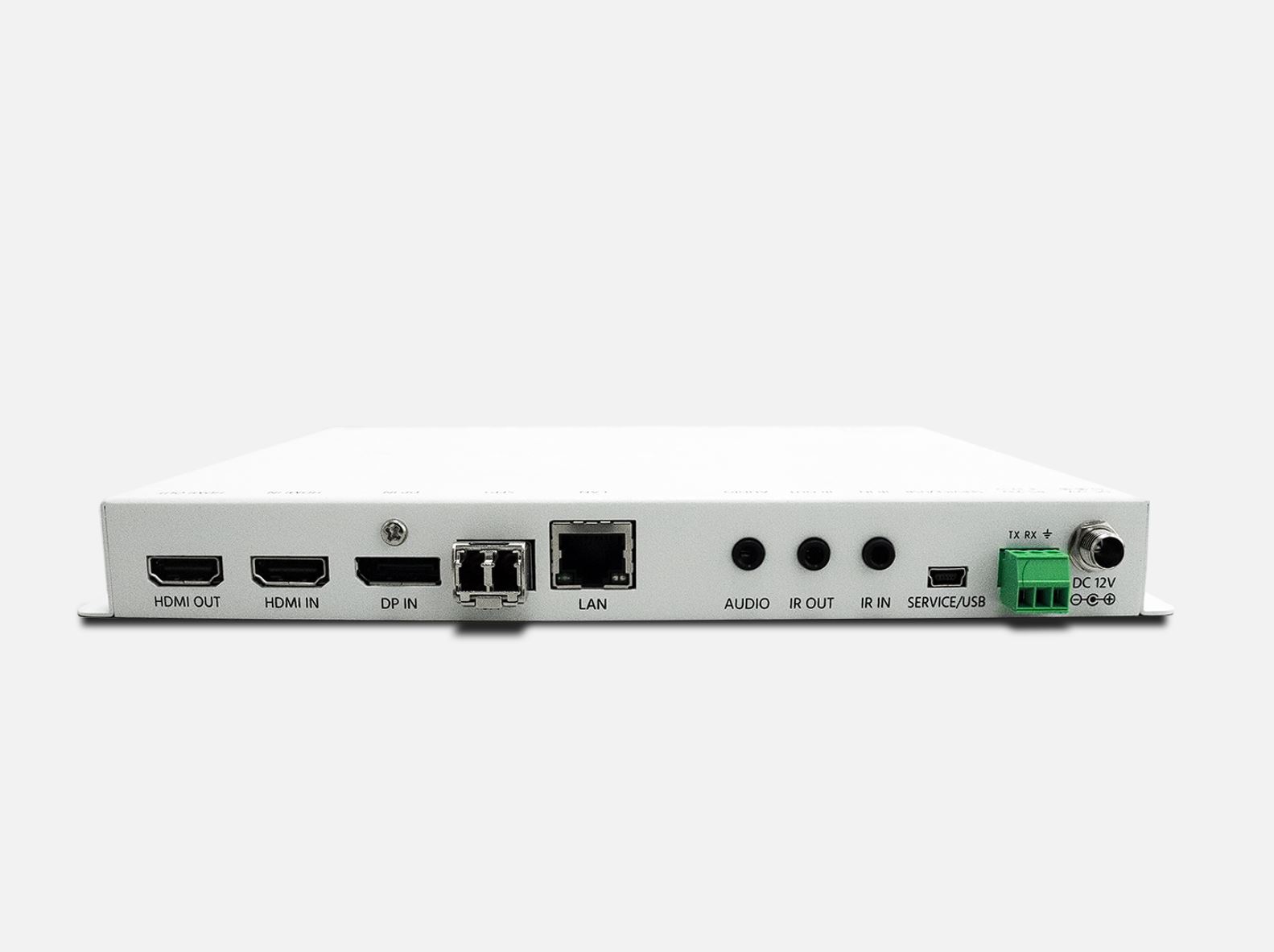

Interfaces
| Input Port | 1 x HDMI (Type-A), 1 x DisplayPort |
| Output Port | 1 x HDMI (Type-A) |
| Bi-directional Port | 1 x 10GbE LAN (SFP+) |
| Pass-through Port | 1 x Unbalanced Stereo (3.5mm) 1 x IR Extender (3.5mm) 1 x IR Blaster (3.5mm) 1 x RS-232 (3-pin Terminal Block) 1 x Ethernet (RJ-45) 3 x USB (Type-A) |
| Service Port | 1 x USB (Mini-B) |
Video
| HDMI Compliance | HDMI 2.0 (DVI 1.0) |
| HDCP Compliance | 2.2 |
| Input Signal Types | HDMI 2.0 / 4K@60, HDR10 / DisplayPort 1.4 HBR2 |
Conexão e Resolução
| Maximum Input | HDMI – 4096×2160p@60, 2560×1600p@60RB |
| DisplayPort – 4096×2160p@60, 2560×1600p@60RB | |
| Streaming – 4096×2160p@60, 2560×1600p@60RB | |
| Maximum Output | HDMI – 4096×2160p@60, 2560×1600p@60RB |
| Streaming – 4096×2160p@60, 2560×1600p@60RB |
Audio
| Digital Formats | HDMI – 8CH LPCM, Bitstream, HD Bitstream DisplayPort- 8CH LPCM, Bitstream, HD Bitstream |
| Analog Formats | Unbalanced 2 Channel |
| Line Level | Frequency Response: < ±0.5dB (20Hz to 20kHz) THD: < 0.02% (20Hz to 20kHz) S/N Ratio: > 80dB (1kHz with 0dBFS) Crosstalk: < −80dB (10kHz, Vin=0dBFS) |
Consumo
| Power Supply | 12V/3A (Locking) |
| Power Consumption | HDMI 2.0 / 4K@60, HDR10 / DisplayPort 1.4 HBR2 |
Material, Peso e Dimensões
| Chassis Material | Metal (Steel) |
| Chassis Color | White |
| Dimensions (W×H×D) | 231.5 × 25 × 158mm |
| Weight | 916g |
| Packing Size | 298 x 258 x 68 mm |
| Certification | CE: EN 60601-1-2:2015(V4.0), EN 60601-1:2006/A1:2013/A12:2014 (V3.1) FCC: Part 18 Class A |
