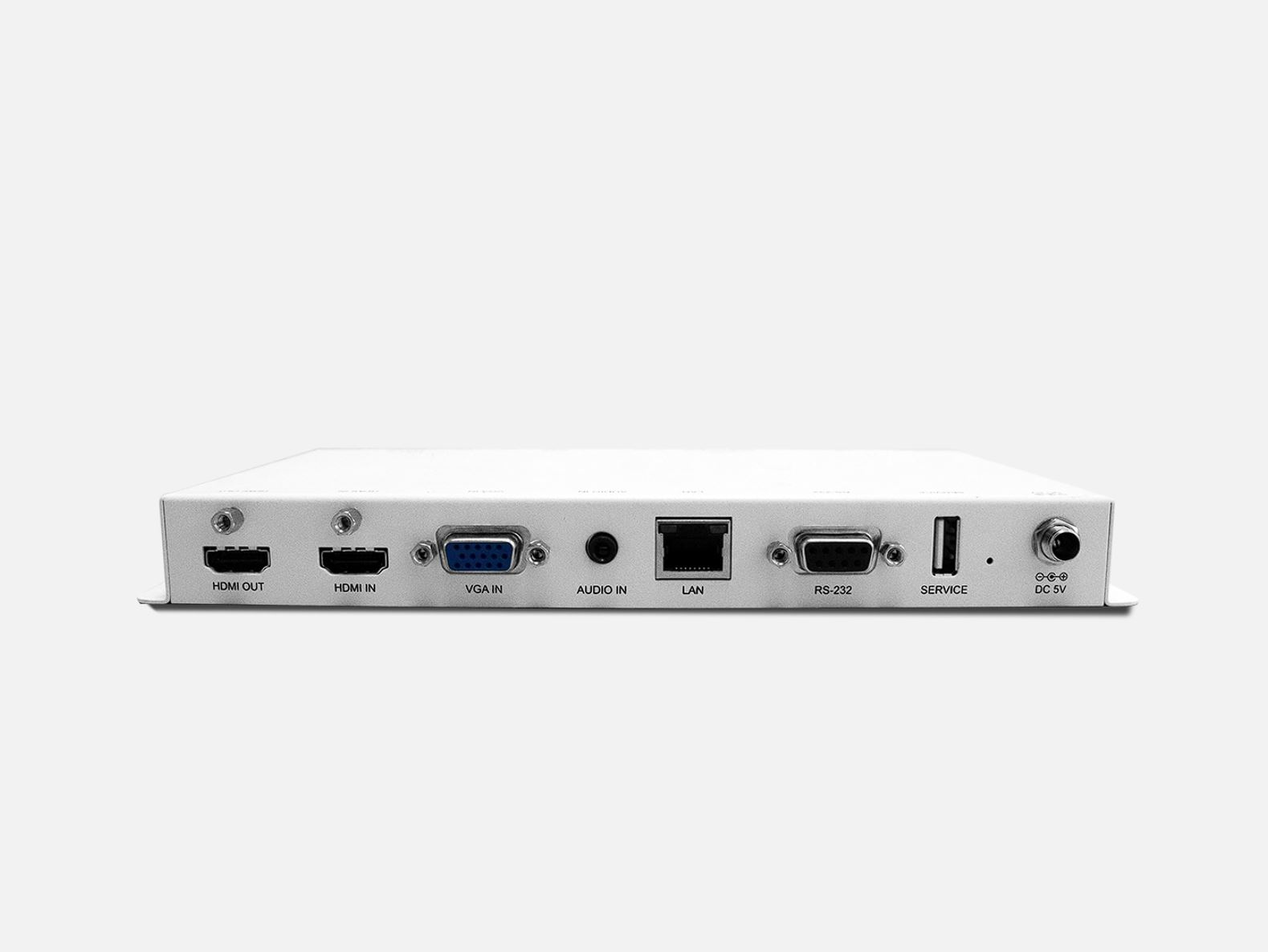

Interfaces
Input Port | 1 x HDMI (Type-A) , 1 x VGA (HD-15) , 1 x Unbalanced Stereo (3.5mm) |
Output Port | 1 x HDMI (Type-A) |
Pass-through Port | 1 x LAN (RJ-45) 1 x RS-232 (DE-9) 1 x MicroSD slot |
Service Port | 1 x USB (Type-A) |
Video
HDMI Compliance | 2.0 |
HDCP Compliance | 2.2 |
Input Signal Types | 4K@60 8bit YUV 4:4:4 |
Output Signal Type | 4K@60 8bit YUV 4:4:4 |
Resolução
Maximum Input | HDMI – 4096×2160p@60, 2560×1600p@60RB |
VGA – 1920×1200p@60RB | |
Maximum Output | HDMI – 4096×2160p@60, 2560×1600p@60RB |
H.264 Stream – 1080p@60 |
Consumo
Power Supply | 5V/2.6A DC (Locking) |
Power Consumption | 2.99W |
Audio
HDMI | Unbalanced Stereo, 2CH LPCM |
Alimentação
Power Supply | 5V/2.6A |
Power Consumption | 9.57W (Full load) |
Material, Peso e Dimensões
Chassis Material | Metal (Steel) |
Chassis Color | White |
Dimensions (W×H×D) | 231.5 × 25 ×108 mm |
Weight | 668g |
Packing Size | 280 x 180 x 71 mm |
Certification | CE: EN 60601-1-2:2015(V4.0), EN 60601-1:2006/A1:2013/A12:2014 (V3.1) FCC: Part 18 Class A |
