Principais Especificações
| Processor | Intel® 10nm 11 gene. Tiger Lake i7/i5/i3/Celeron |
| System Memory | DDR4 up to 64GB |
| OS Support | Microsoft® Windows 11 Microsoft® Windows 10 (64bit) Ubuntu 20.04 LTS IGEL (thin client solution) |
| Grahpics | Intel® UHD Graphics |
| Storage | m.2 SSD up to 1TB |
| Wireless Communication | 802.11 a/b/g/n/ac/ax (optional) WiFi 6E + Bluetooth 5.3 (optional) |
| Touch | PCT (optional) |
| Speaker | 3W x2 |
| Trusted Platform Module | TPM 2.0 |
| Security | Smart Card Reader (optional) Imprivata RFID reader (optional) Barcode reader (optional) |
| Waterproof | Front IP65 ; rear IPX1 |
Ecrã
| Display Size | 23.8″ |
| Resolution | FHD 1920 x 1080 |
| Max. Colors | 16.7 M |
| Contrast Ratio | 3000:1 |
| Luminance (cd/m2) | 250 |

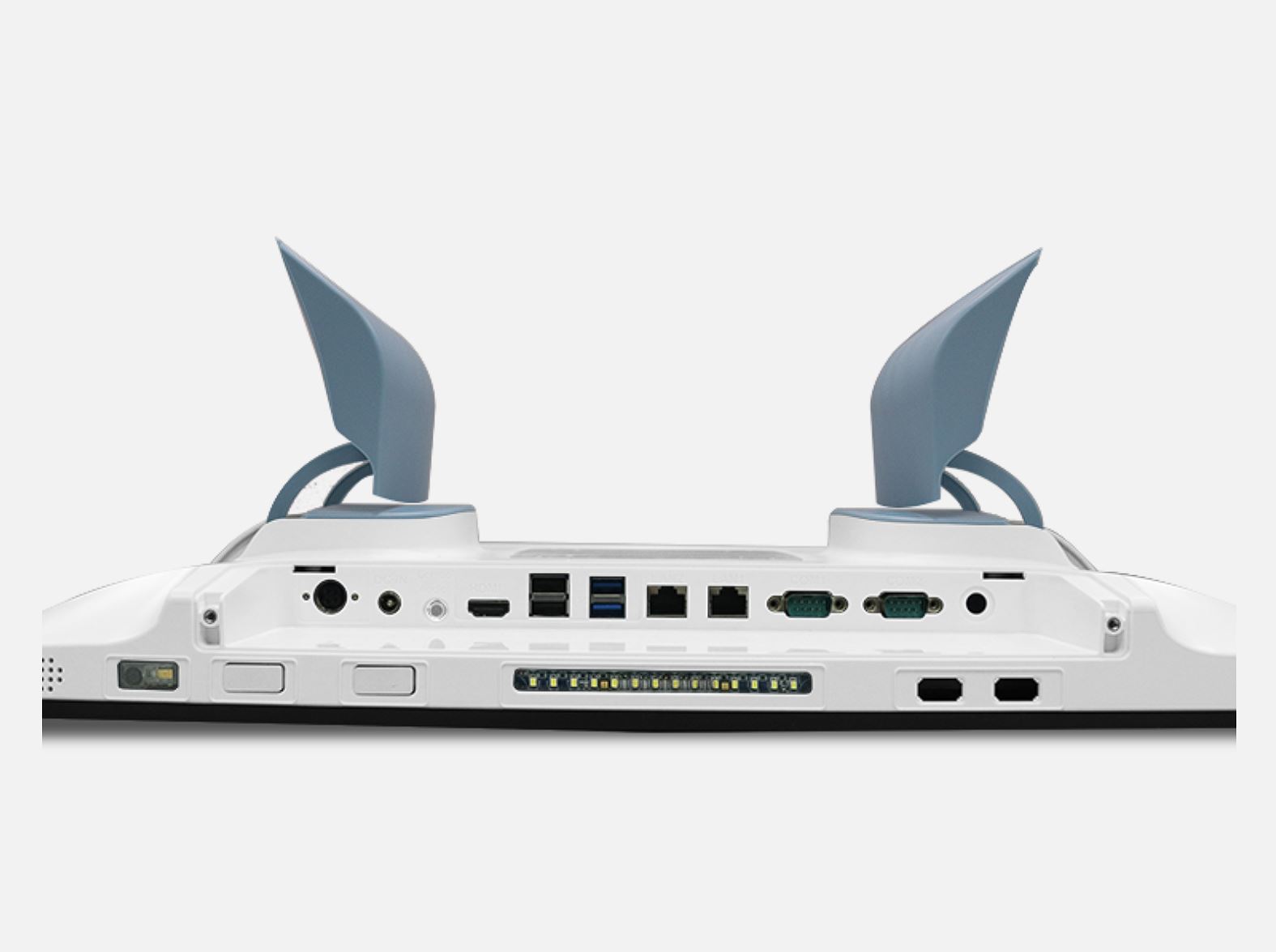

Entradas e Saídas
| USB | Rear I/O :USB 3.0 x2, USB 2.0 x2 Front button I/O : USB 3.0 x2 |
| Video Out | HDMI 1.4 x1 |
| COM | COM port x2 |
| Audio | Combo audio port x1 |
| Ethernet | 1.5kv isolated Gigabit LAN x2 |
| DC-in | 19V DC-in x1 |
Condições Mecânicas e Ambientais

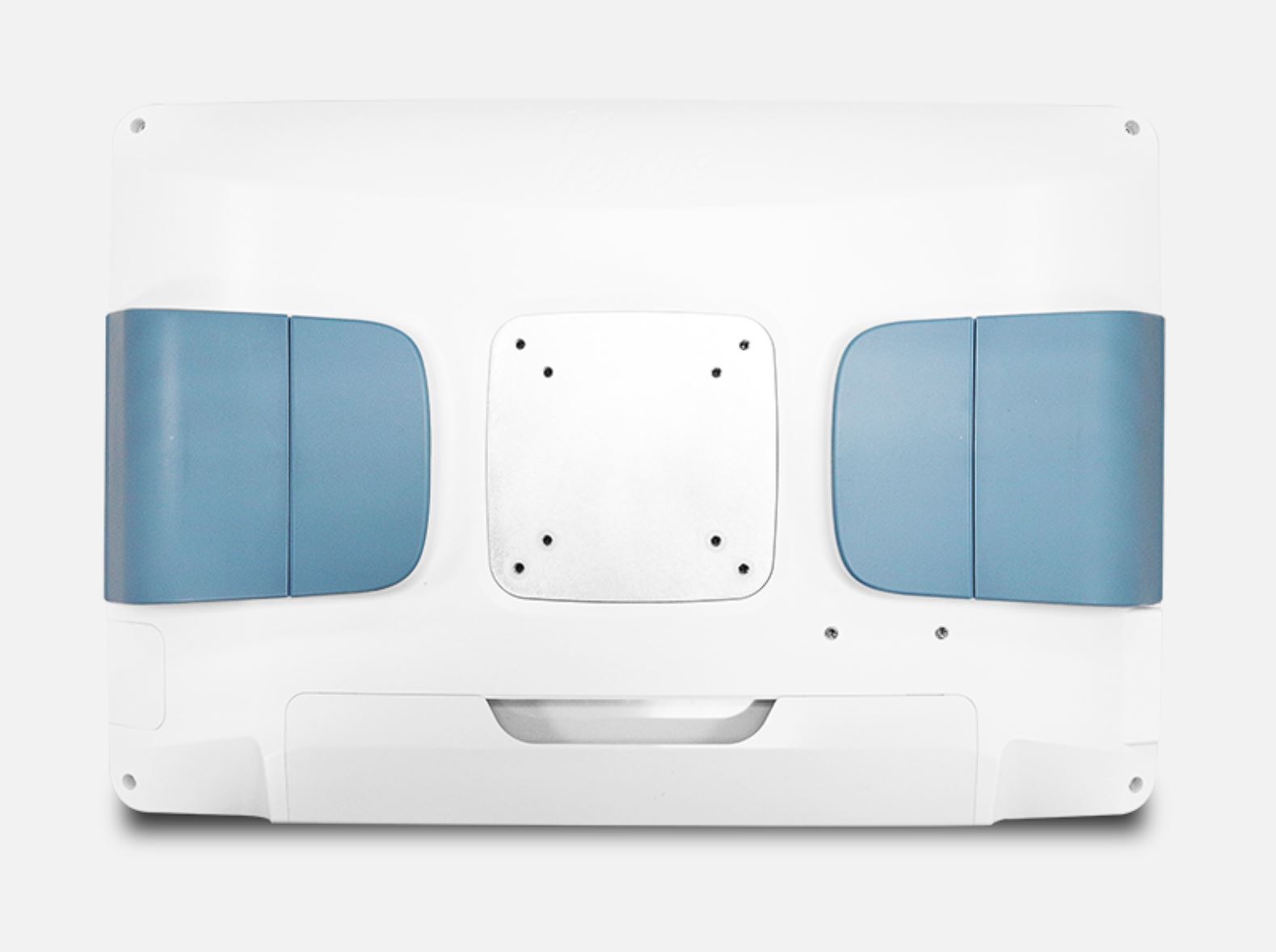

| VESA | 75/100 mm VESA mount |
| Operating Temperature | 0°C ~40°C( 32°F ~104°F) |
| Storage Temperature | -20°C ~ 60°C(-4°F ~ 140°F) |
| Storage Humidity | 10%~95%@35°C, non-condensing |
| Dimension | 560(L) x 78.4(W) x373(H) mm |
| Package Size | 730(L) x 240(W) x 550(H) mm |
| Net Weight | 7kg |
| Certifications | CE: EN 60601-1-2: 2015 + A1: 2021 ( V4.1), EN 60601-1: 2007 + A1:2013 +A2:2021 ( V3.2) EN 55032:2015/A1:2020 EN55035:2017/A11:2020( ITE) IEC62368-1:2020+A11:2020 ( ITE) FCC : Part 15B/ Part 18 UL: ANSI AAMI ES60601-1:2005/A1:2012/A2:2021( V3.2) cUL: CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020,MOD) ( V3.2) TELEC :JAPAN TELEC |
