Principais Especificações
| Processor | Intel® 9th Generation Core i7-9700TE 8 Cores 3.8GHz Intel® 9th Generation Core i5-9500TE 6 Cores 3.6GHz |
| System Memory | Supports Dual Channel DDR4 2666 SODIMM up to 64GB |
| Expansion Interface | PCI Express[x4]/[x1] x1 (optional) |
| OS Support | Windows® 10, Windows® 11, Linux® |
| Storage Disk Drive | M.2 2280 SATA SSD x 1 2.5″ SATA Hard Disk Drive/SSD x 1 (optional) |
| Security | Trusted Platform Module 2.0 , Imprivata RFID Reader (optional) |
| Wireless Communication | 802.11 ac/a/b/g/n(optional), 802.11 ax (optional), Bluetooth 5 (optional) |
| Speaker | 2W x 2 |
| Function Key | LCD Brightness Up/Down, Touch Screen On/Off, Reading Light On/Off |
| Power Requirement | AC 100~240V / DC 12V/24V |
Ecrã
| Size | 22″ LCD |
| Max. Resolution | 1920 x 1080 |
| Luminance(cd/m2)(TYP) | 250 nits |
| View Angle | 178˚(H)/178˚(V) |
| Contrast Ratio | 1000:1 |
| Back Light Life Time | 50,000 Hours |
| Touch Screen | Capacitive Multi-Touch |

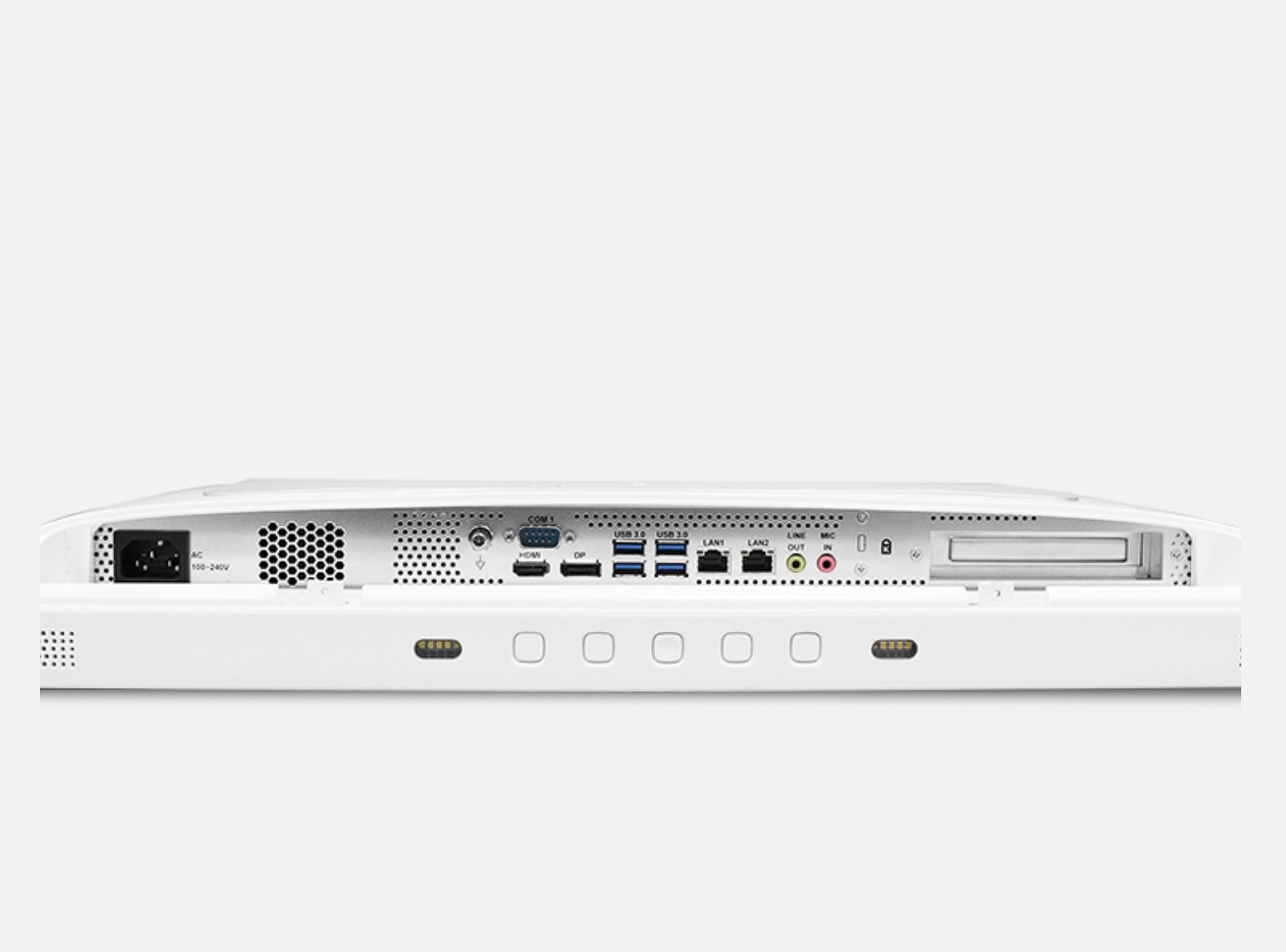

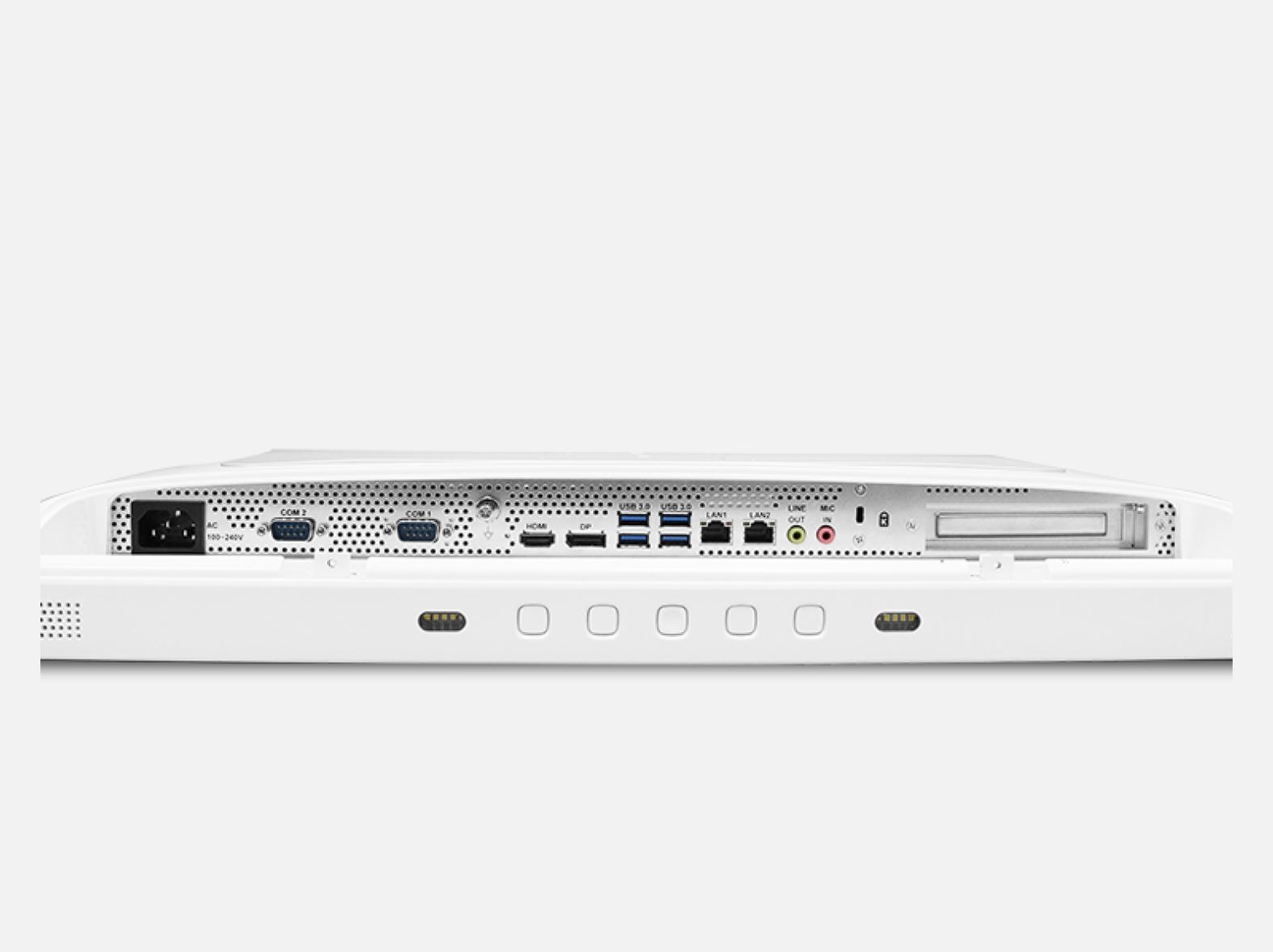

Entradas e Saídas
| USB | USB 3.2 Gen 1 x 4 Isolated USB 2.0 Full Speed x4 (optional) |
| Serial Port | RS-232 x 2 or x1 ( When backup battery is installed) |
| Ethernet | 1.5KV Isolated Gigabit LAN x 2 |
| Video Out | Display Port 1.2 x1, HDMI 1.4b x 1 (Supports resolution up to 3840 x 2160) |
| Audio | Mic-in, Line-out |
Condições Mecânicas e Ambientais
| Operating Temperature | 0°C ~ 35°C(32°F ~ 95°F) |
| Storage Temperature | -20°C ~ 60°C(-4°F ~ 140°F) |

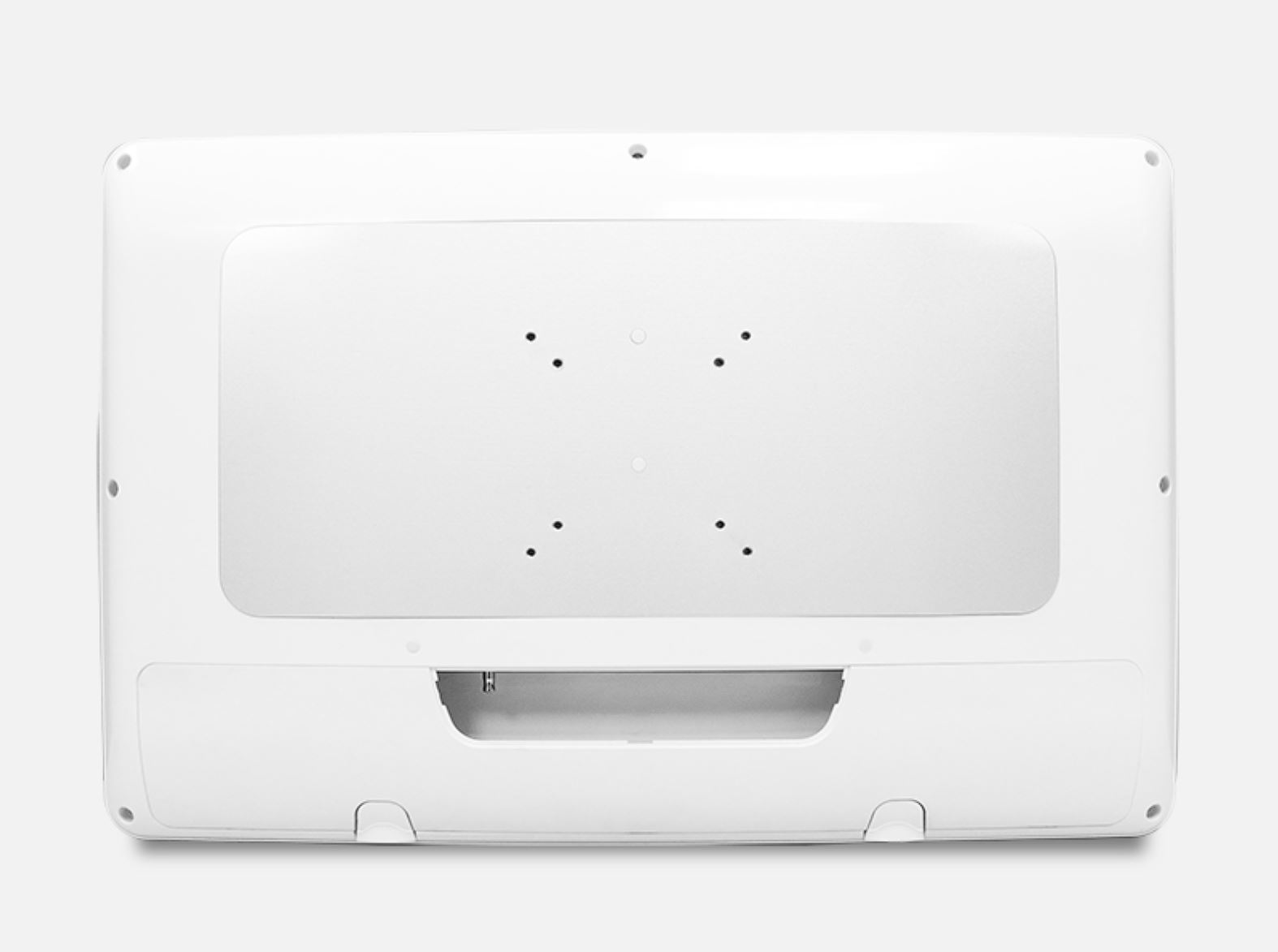

| Mounting VESA | 75/100 mm |
| Degree of protection | IP65 in the front ; IP54 in the back |
| Dimension | 542 x 355 x 67mm |
| Package Size | 711 x 195 x 503mm |
| Gross Weight | 11 kg (24.25 lb) |
| Net Weight | 7.5 kg(16.5 lb) |
| Certifications | CE : EN 60601-1-2: 2015 + A1: 2021 ( V4.1), EN 60601-1: 2007 + A1:2013 +A2:2021 ( V3.2) EN 55032:2015/A1:2020 EN55035:2017/A11:2020( ITE) IEC62368-1:2020+A11:2020 ( ITE) FCC : Part 15B/ Part 18 TELEC: JAPAN TELEC |
