Principais Especificações
| Processor | Intel® 6th Generation Core i7 / i5 / i3 Processor |
| System Memory | Supports Dual Channel DDR4 2133 SODIMM up to 32GB |
| Chipset | Intel® H110 |
| OS Support | Windows® 7, Windows® 10, Linux® |
| Storage Disk Drive | 2.5″ SATA Hard Disk Drive/SSD x 1 Slim DVD-RW Drive x 1 (optional) |
| Security | Trusted Platform Module, RFID Reader (optional) Smart Card Reader x 1 (optional) |
| Wireless Communication | 802.11ac/a/b/g/n(optional), Bluetooth 3.0HS & 4.0 (optional) |
| Speaker | 5W x 2 |
| Function Key | Speaker Volume Up/Down, LCD Brightness Up/Down LCD On/Off, Touch Screen On/Off, Reading Light On/Off |
| Power Requirement | DC 12V / DC 24V when backup battery is installed |
Ecrã
| Size | 19″ TN LCD |
| Resolution | 1280 x 1024 |
| Luminance | 250 nits |
| View Angle | 170˚(H)/160˚(V) |
| Contrast Ratio | 1000:1 |
| Back Light Life Time | 30,000 Hours |
| Touch Screen | 5-Wire Resistive / Capactive Multi-Touch Screen |

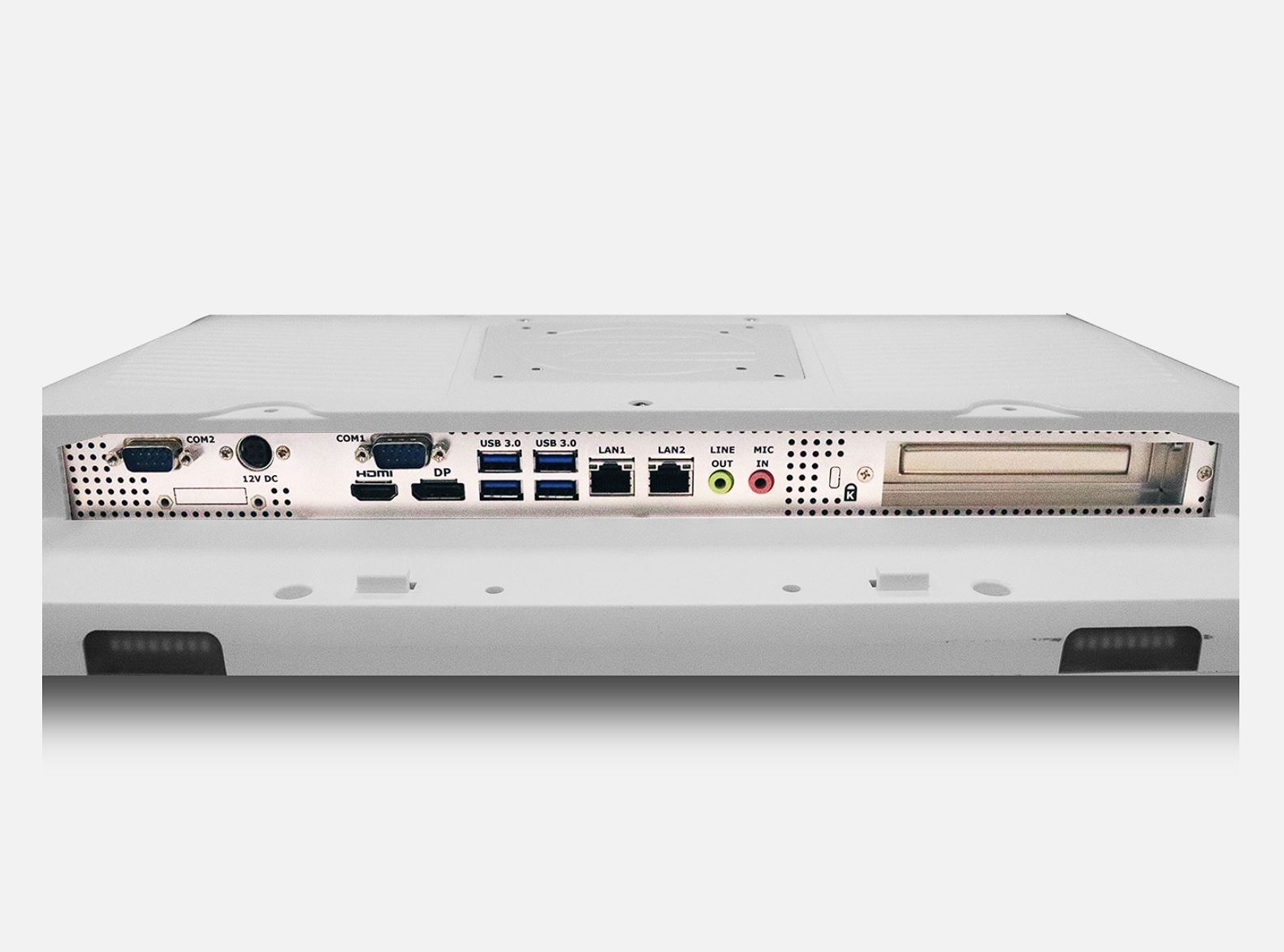

Entradas e Saídas
| USB | USB 3.0 x 4, USB 2.0 x 2 |
| Serial Port | RS-232 x 2 |
| Ethernet | 1.5KV Isolated Gigabit LAN x 2 |
| Video Out | Display Port 1.2 x1, HDMI 1.4 x 1 (Supports resolution up to 3840 x 2160) |
| Audio | Mic-in, Line-out |
Condições Mecânicas e Ambientais
| Operating Temperature | 0°C ~ 35°C(32°F ~ 95°F) |
| Storage Temperature | -20°C ~ 60°C(-4°F ~ 140°F) |
| Mounting VESA | 75/100 mm |
| Degree of protection | IP65 in the front ; IP54 in the back |
| Dimension | 450 x 388 x 66 mm |
| Package Size | 640 x 220 x 520 mm |
| Gross Weight | 11 kg (24.25 lb) |
| Net Weight | 7.5kg (16.53b) |
| Certifications | CE: EN 60601-1-2:2015(V4.0), EN 60601-1:2006/A1:2013(V3.1) FCC: Part 18 Class B UL: ANSI/AAMI ES60601-1:2012 (V3.1) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1) |
