Principais Especificações
| Processor | Intel® Atom x6425E Quad Core Processor, Intel® Atom x6211E Dual Core Processor, Intel® Celeron N6210 Dual Core Processor |
| System Memory | Supports DDR4 3200 SODIMM up to 16GB ( In-Band ECC with Atom x6211E) |
| OS Support | Windows® 10 and 11, Linux (optional) |
| Expansion Interface | M.2 2230(E-key) x 1, Proprietary PCIe[x1] x1(Optional) |
| Storage Disk Drive | M.2 2242 SATA SSD x 1 2.5″ SATA SSD x 1 |

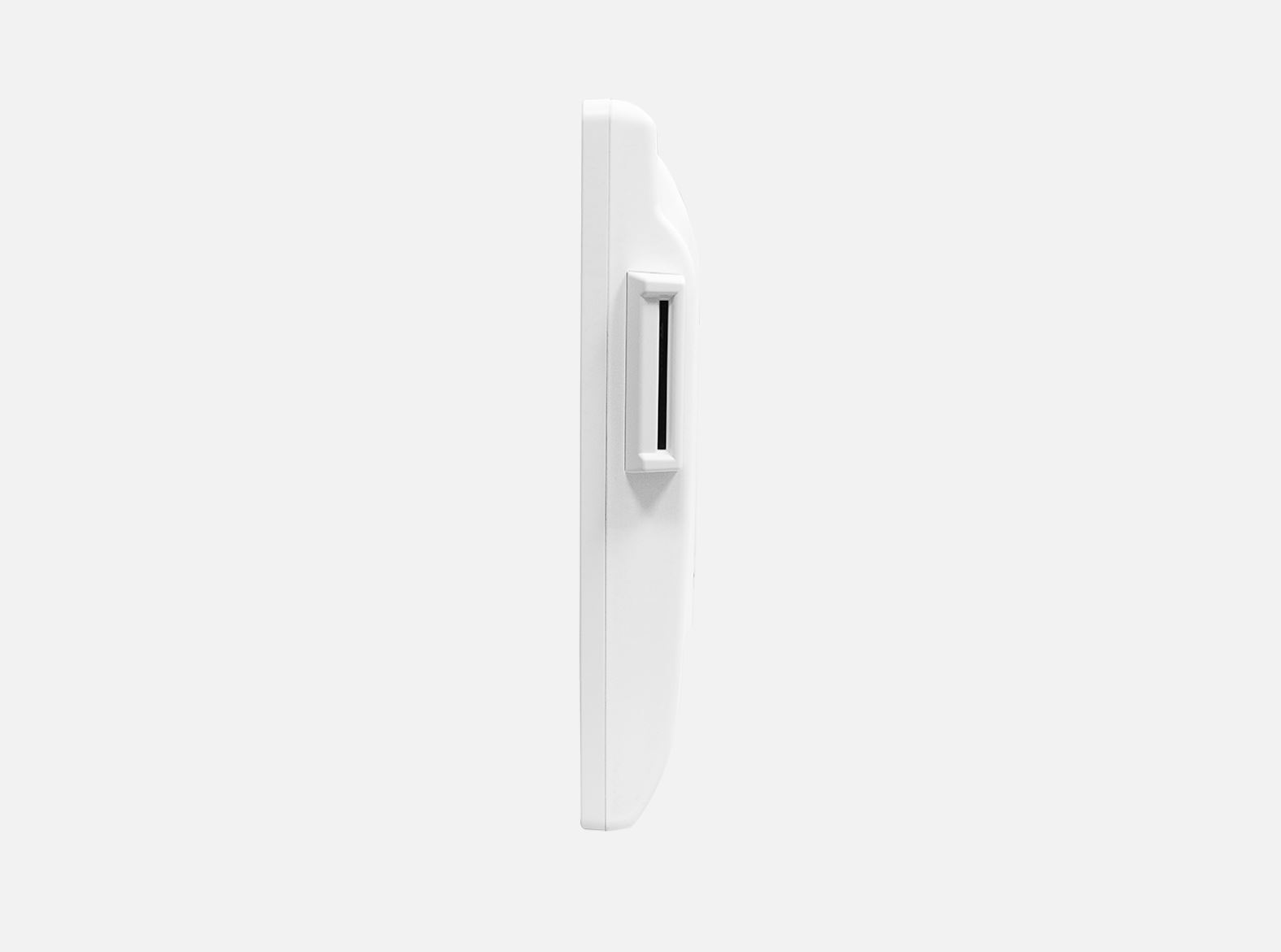

| Security | RFID Reader (Optional) |
| Function Key | LCD Brightness Up/Down, Touch Screen On/Off |
| Wireless Communication |
802.11ac/ax(optional) + Bluetooth 5.1/5.3(optional) |
| Speaker | Built in Speaker |
| Power Requirement | DC 12V |
Ecrã

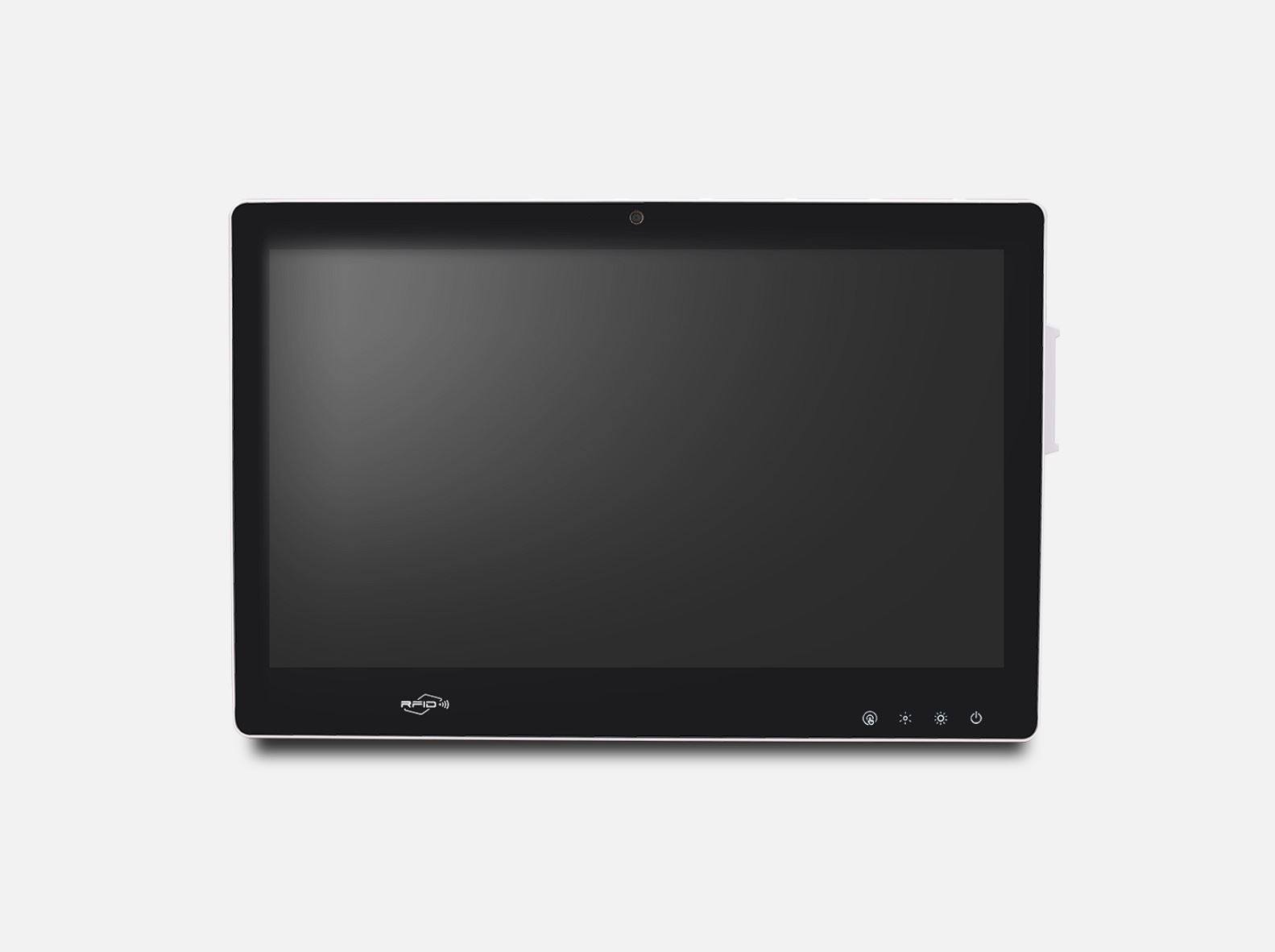

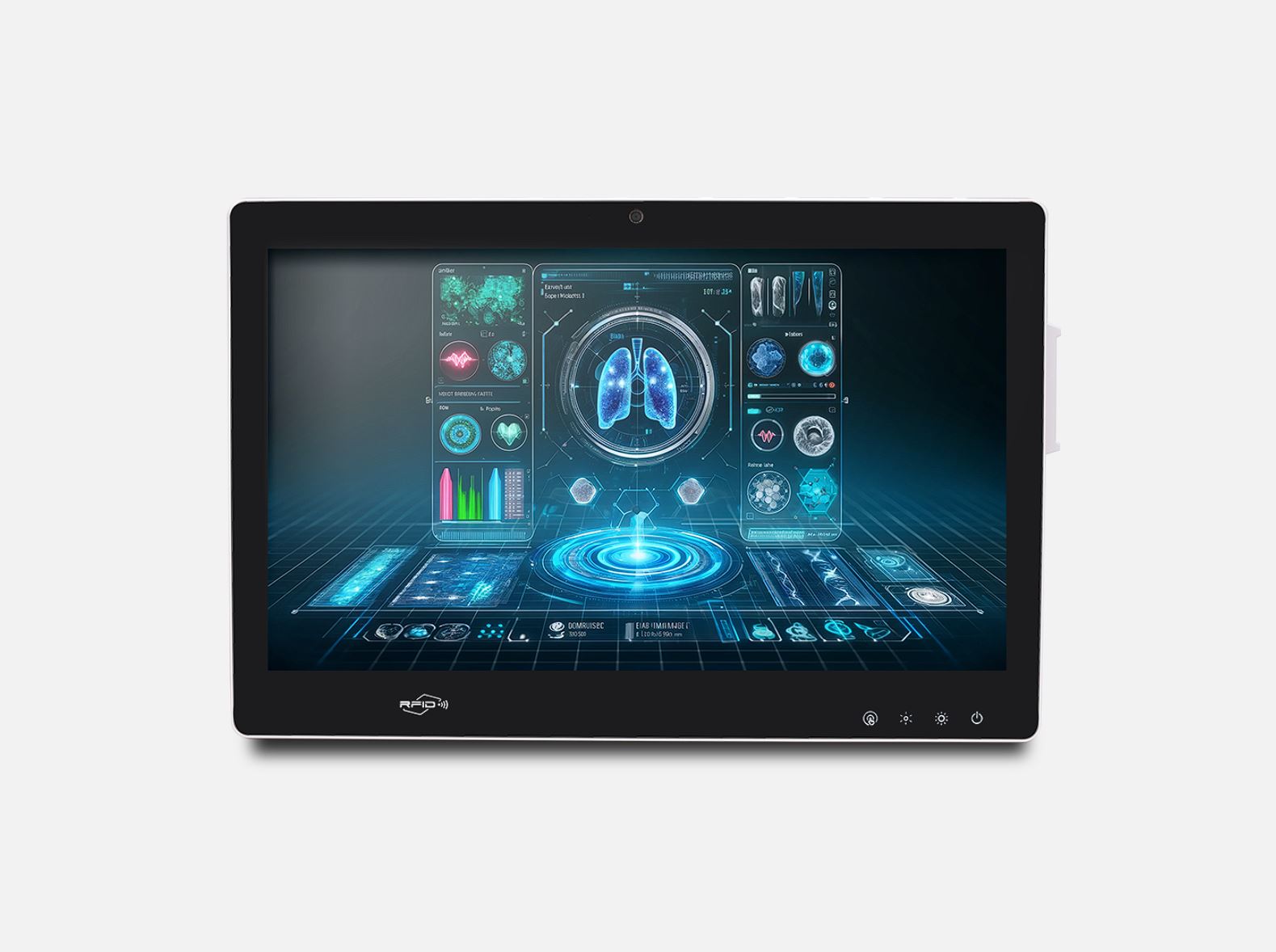

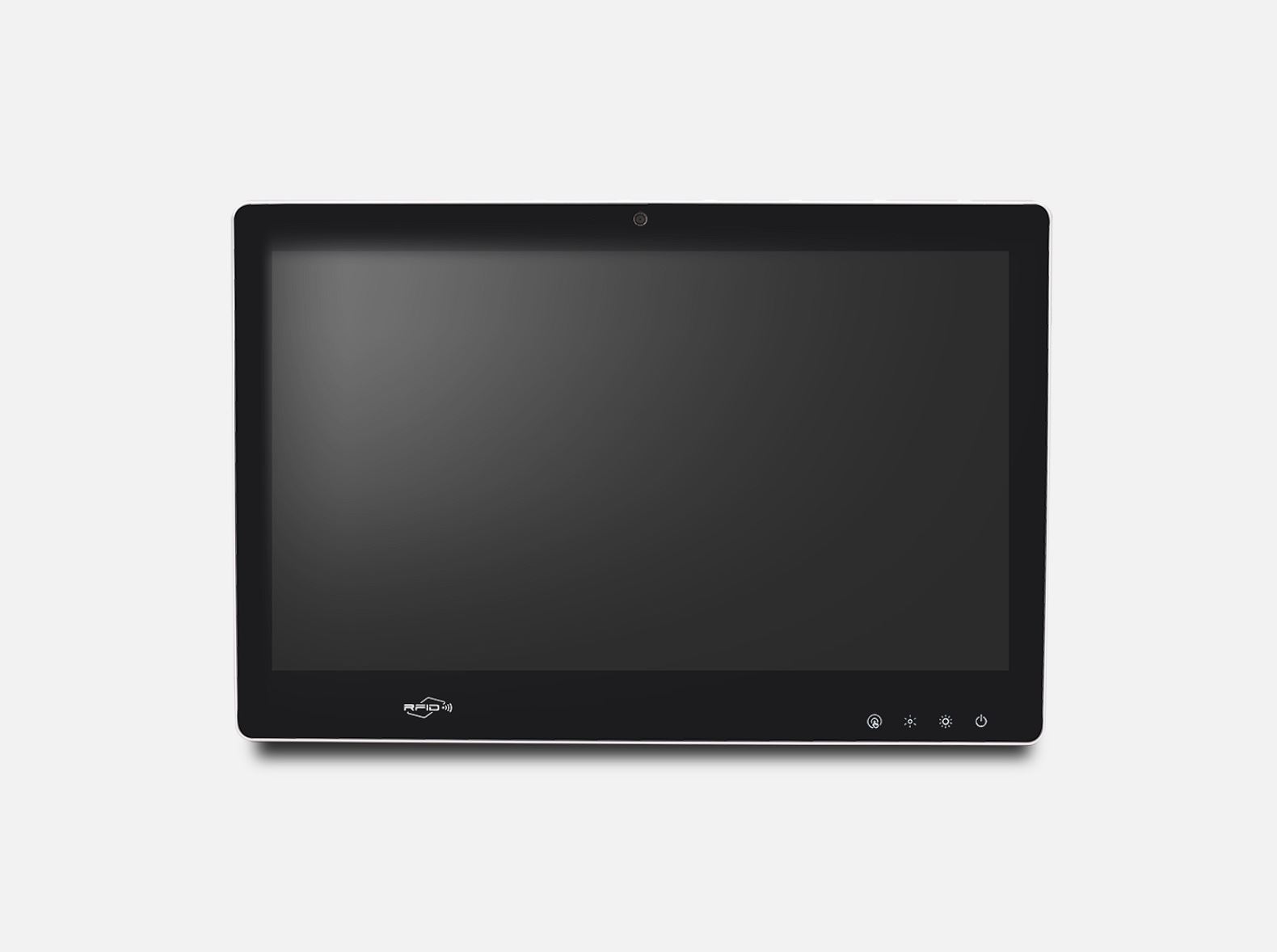

| Size | 18.5″ LCD |
| Resolution | 1366x 768(WXGA)/1920x 1080(FHD) |
| Luminance | 250nits /350nits |
| Max. Colors | 16.7M |
| View Angle | 178˚(H)/178˚(V) |
| Contrast Ratio | 1000:1 |
| Back Light Life Time | 30,000 hours/50,000 hours |
| Touch Screen | Capacitive Multi-Touch |

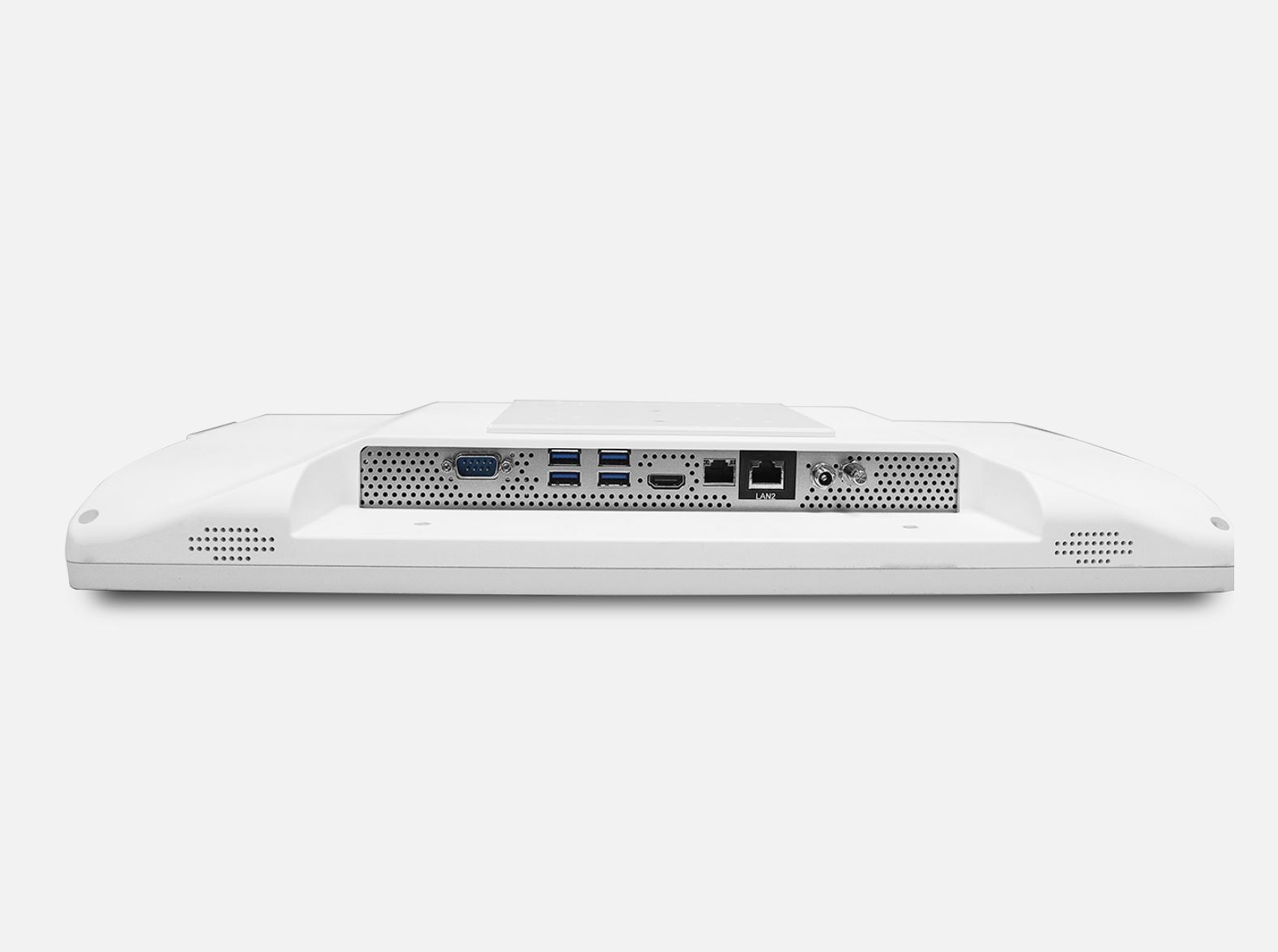

Entradas e Saídas
| USB | USB 3.1 Gen 2 x 4 |
| Serial Port | RS-232 x 1 |
| Ethernet | Gigabit LAN x 2 |
| Video Out | HDMI 2.0 x 1 |
Condições Mecânicas e Ambientais
| Power Consumption | TBD |
| Operating Temperature | 0°C ~40°C( 32°F ~104°F) |
| Storage Temperature | -20°C ~ 60°C(-4°F ~ 140°F) |

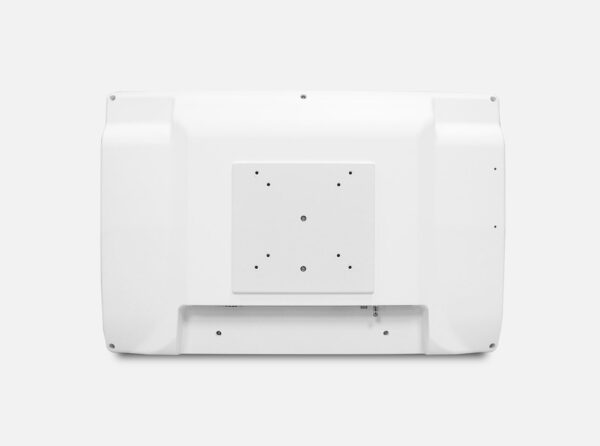

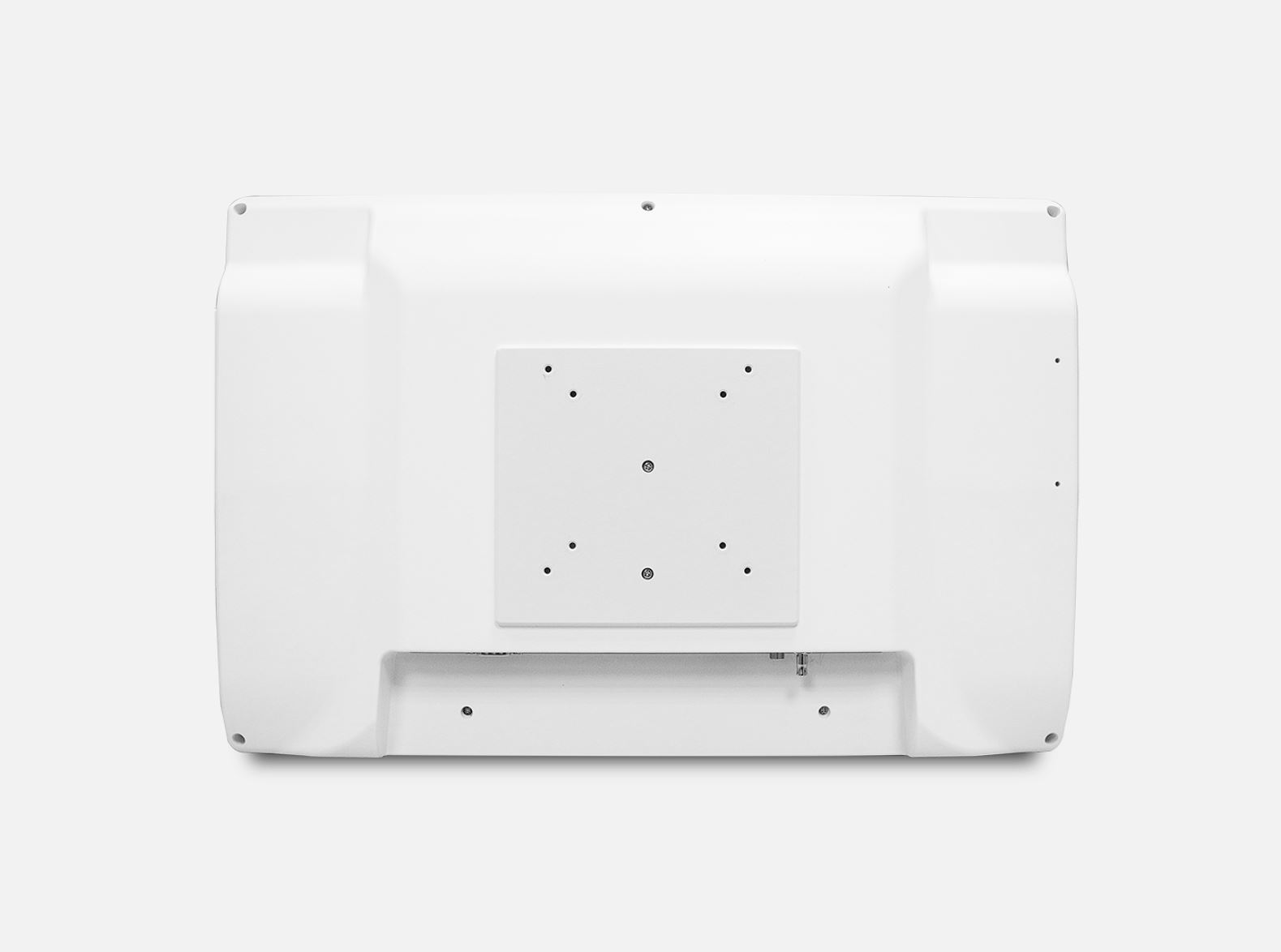

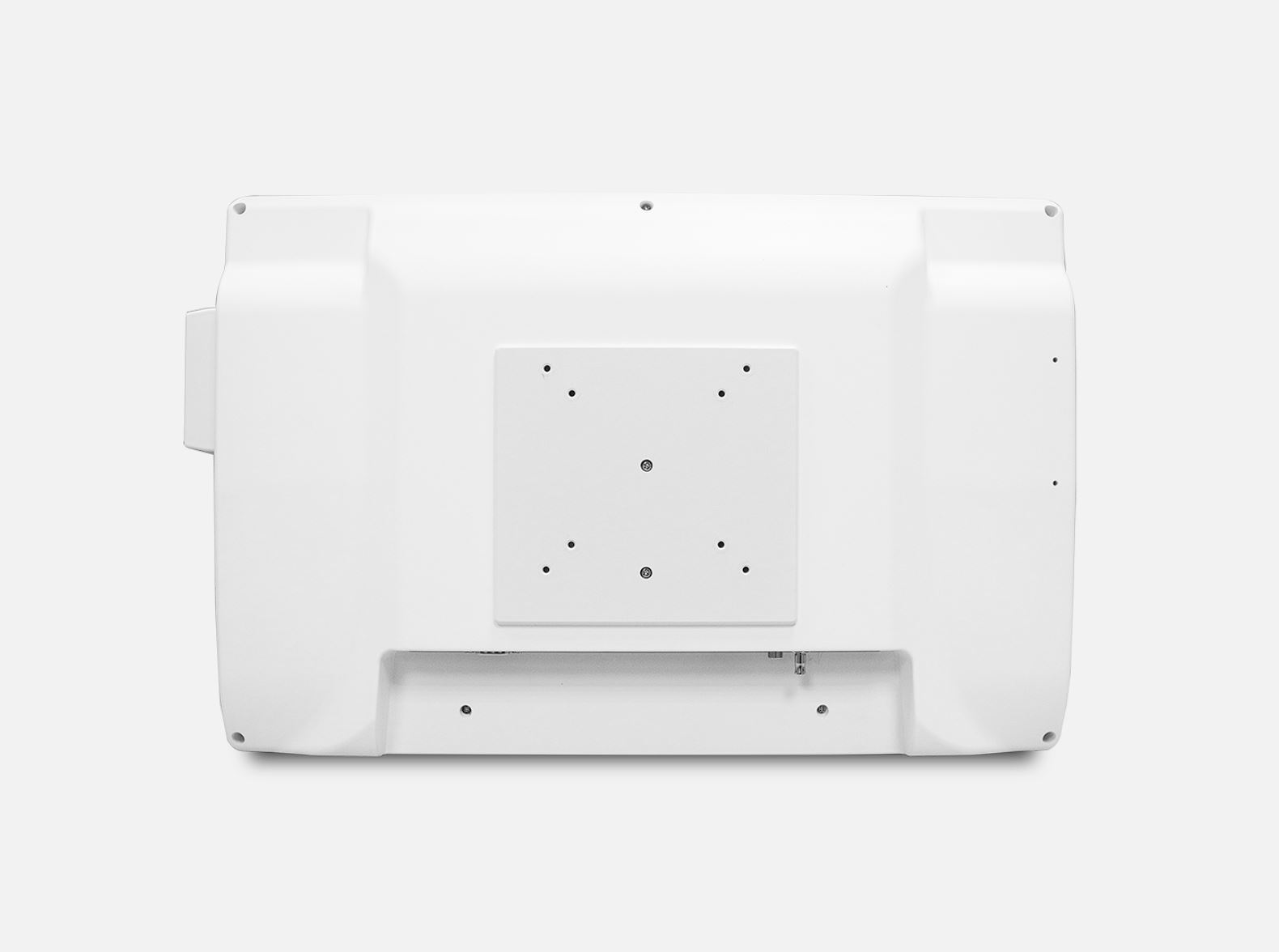

| Mounting | VESA 75/100 mm |
| Dimension | 457 mm x 303 mm x 50mm |
| Package Size | TBD |
| Gross Weight | TBD |
| Net Weight | TBD |
| Certifications | CE : EN 60601-1-2: 2015 + A1: 2021 ( V4.1), EN 60601-1: 2007 + A1:2013 +A2:2021 ( V3.2) EN 55032:2015/A1:2020 EN55035:2017/A11:2020( ITE) IEC62368-1:2020+A11:2020 ( ITE) FCC : Part 15B/ Part 18 UL : ANSI AAMI ES60601-1:2005/A1:2012/A2:2021( V3.2) cUL : CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020,MOD) ( V3.2) TELEC : JAPAN TELEC |
