Principais Especificações
| Processor | Intel® Atom x6425E Quad Core Processor, Intel® Atom x6211E Dual Core Processor, Intel® Celeron N6210 Dual Core Processor |
| System Memory | Supports DDR4 3200 SODIMM up to 16GB ( In-Band ECC with Atom x6211E) |
| Expansion Interface | M.2 2230(E-key) x 1, Proprietary PCIe[x1] x1(Optional) |
| Storage Disk Drive | M.2 2242 SATA SSD x 1 |
| Security | RFID Reader (optional) |
| Wireless ommunication |
802.11ac/ax(optional) + Bluetooth 5.1/5.3(optional) |
| Speaker | Built in Speaker |
| Function Key | LCD Brightness Up/Down, Touch Screen On/Off |
| Power Requirement | DC 12V |
| OS Support | Windows® 10 and 11, Linux (optional) |
Ecrã
| Size | 15.6″ LCD |
| Max. Resolution | 1920 x 1080 |
| Luminance(cd/m2)(TYP) | 300 nits |
| Max. Colors | 16.7 M |
| View Angle | 178˚(H)/178˚(V) |
| Contrast Ratio | 1000:1 |
| Back Light Life Time | 30,000 hours/50,000 hours |
| Touch Screen | Capacitive Multi-Touch |

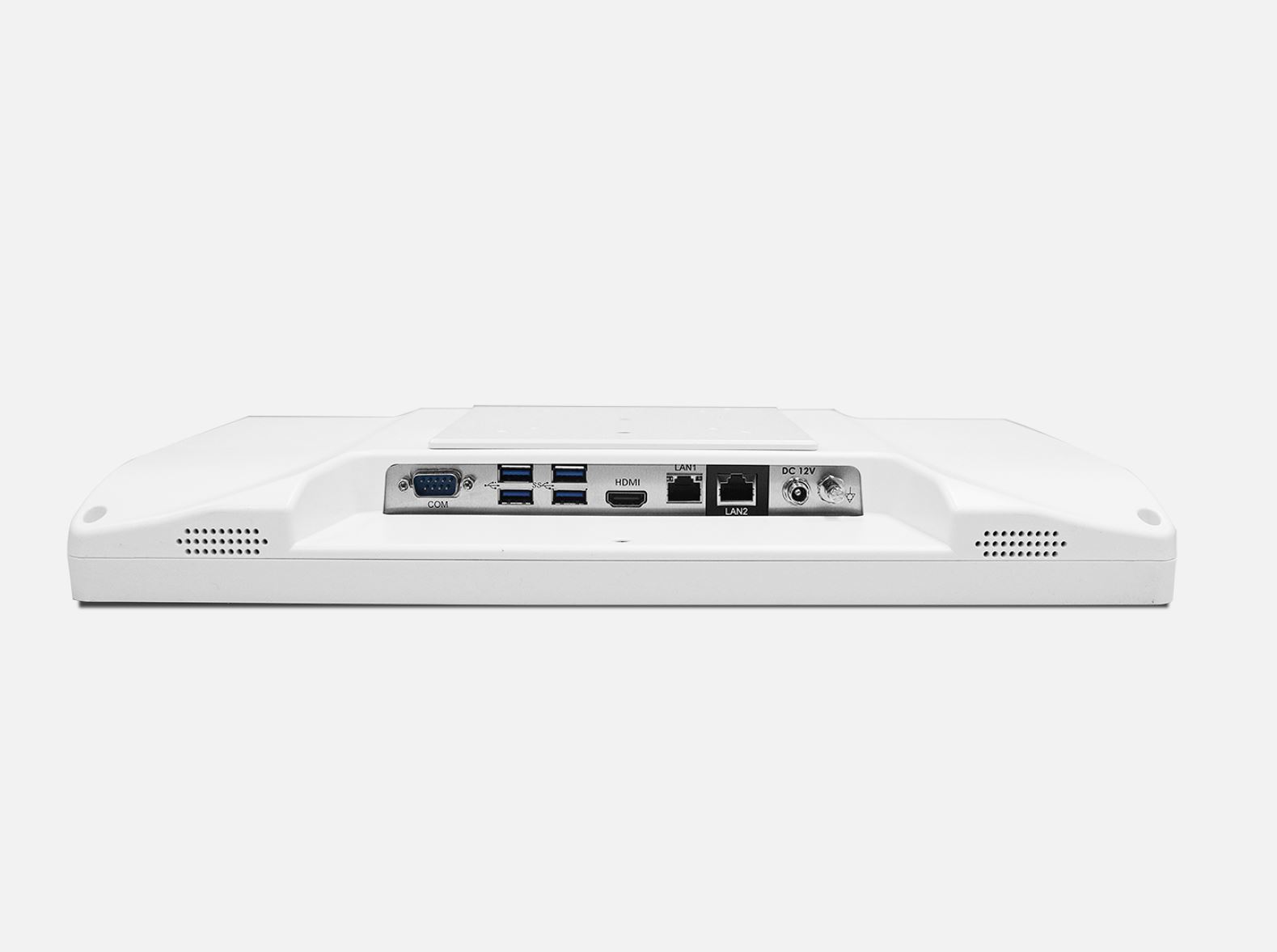

Entradas e Saídas
| USB | USB 3.1 Gen 1 x4 |
| Serial Port | RS-232 x 1 |
| Ethernet | Gigabit LAN x 2 |
| Video Out | HDMI 2.0 x 1 |
Condições Mecânicas e Ambientais
| Power Consumption | TBD |
| Operating Temperature | 0°C ~40°C( 32°F ~104°F) |
| Storage Temperature | -20°C ~ 60°C(-4°F ~ 140°F) |

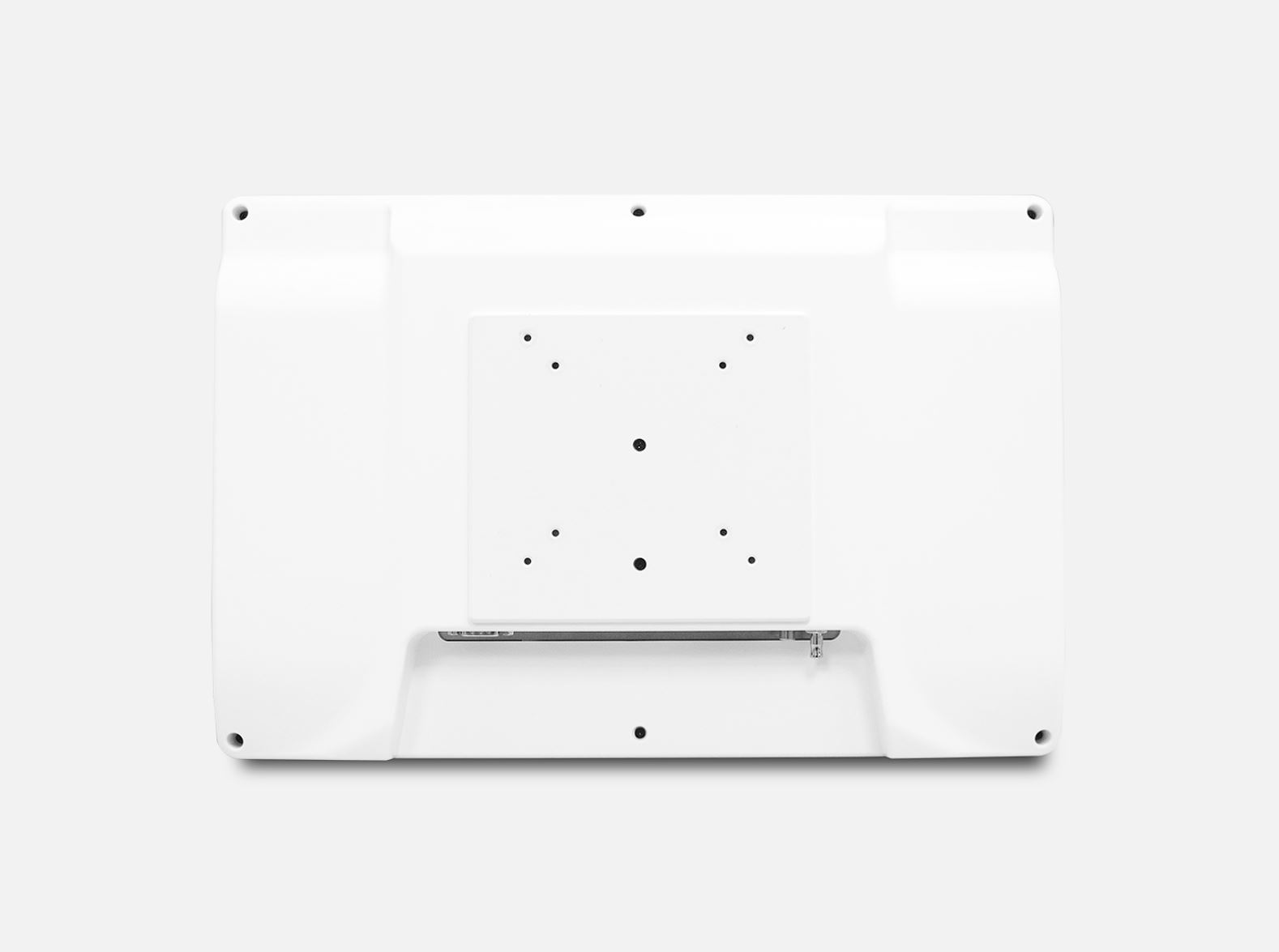

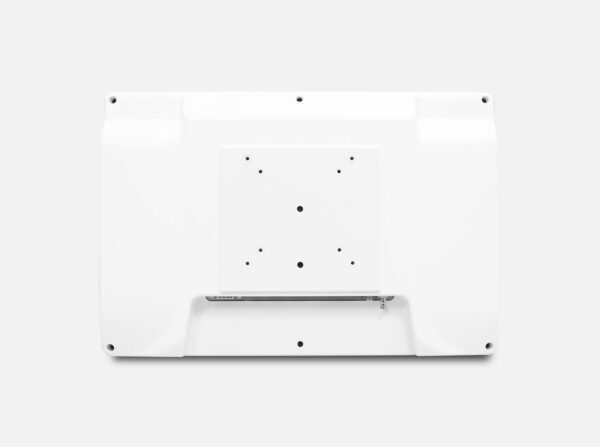

| Mounting | VESA 75/100 mm |
| Degree of protection | IP65 in the front, IPX1 |
| Dimension | 398 x 265 x 47mm |
| Package Size | TBD |
| Gross Weight | TBD |
| Net Weight | TBD |
| Certifications | CE: EN 60601-1-2: 2015 + A1: 2021 (V4.1), EN 60601-1: 2007 + A1:2013 +A2:2021 (V3.2) EN 55032:2015/A1:2020 EN 55035:2017/A11:2020 (ITE) IEC 62368-1:2020+A11:2020 (ITE) FCC: Part 15B/ Part 18 UL: ANSI AAMI ES60601-1:2005/A1:2012/A2:2021(V3.2) cUL: CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020,MOD) (V3.2) TELEC :JAPAN TELEC |
