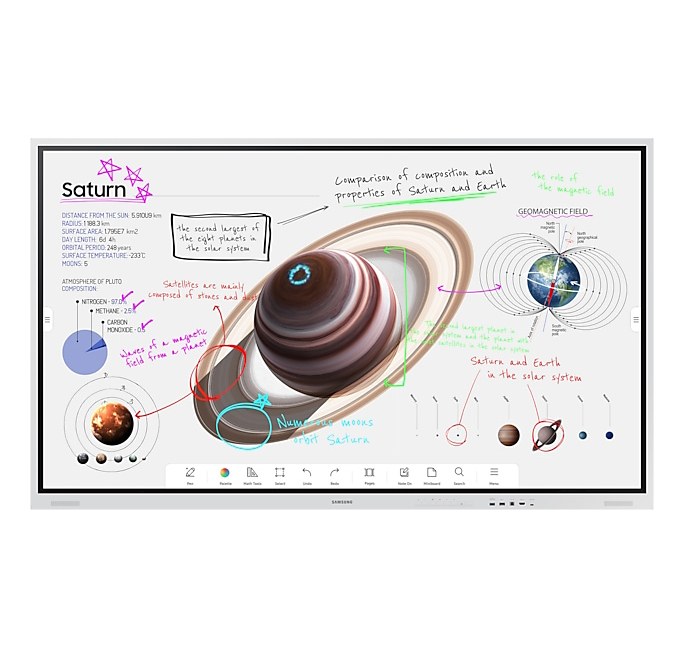

ECRÃ

Diagonal Size: 75″
Panel Type: VA
Resolution: 3,840 x 2,160
Pixel Pitch (HxV, mm): 0.2451×0.2451(mm)
Brightness (Typ): 350cd/m2 (w/o glass), 220cd/m2 (w/glass)
Contrast Ratio: 4000:1(without glass)
Viewing Angle (H/V): 178/178
Response Time: 8ms
Color Gamut: 72%
Glass Haze: 2%(without glass)
H-Scanning Frequency: 30~81kHz
Maximum Pixel Frequency: 594Mhz
V-Scanning Frequency: 48~75Hz
Operation Time Support: 16/7

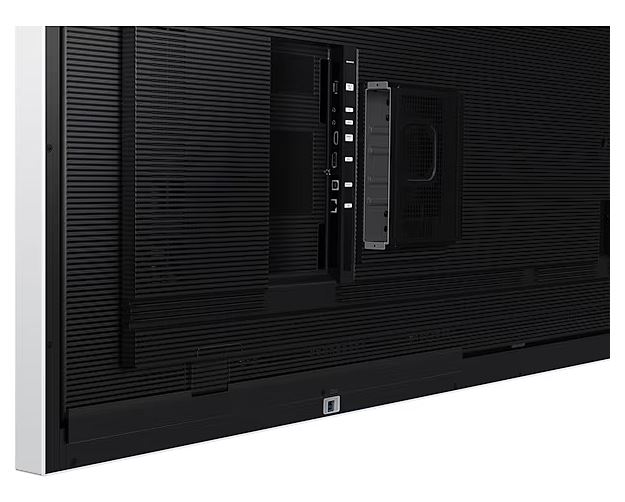

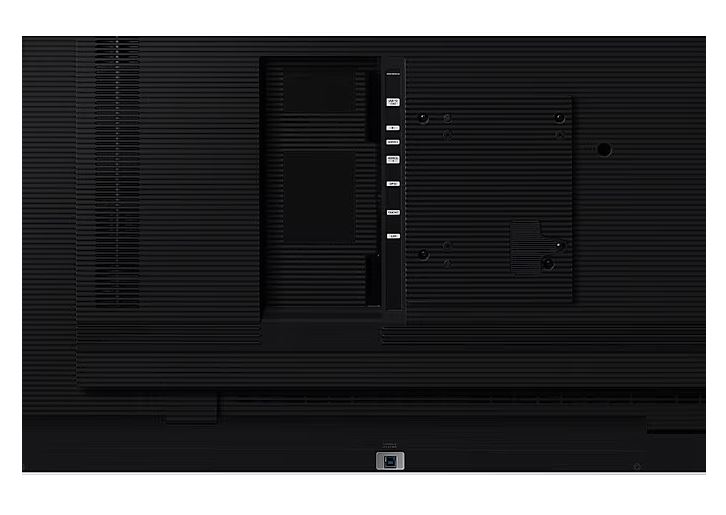

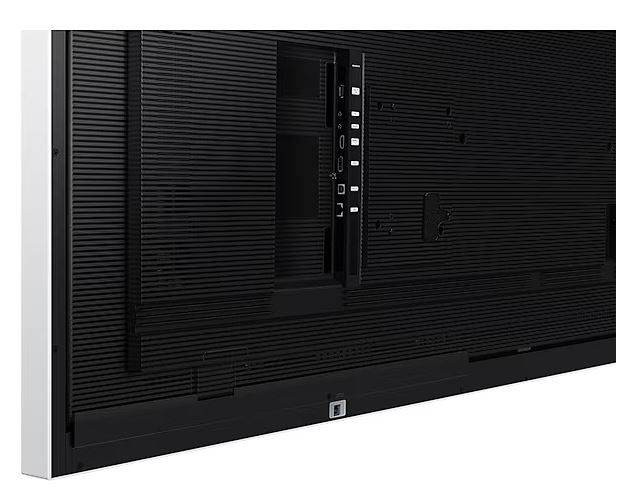

CONETIVIDADE

HDMI In: 2
DP In: 1
Version of HDMI: 2.0
Version of DP: 1.2
Version of HDCP: 2.2
USB: 4 (A type : Front 2, Rear 1, C Type : Front 1)
Audio Out: Stereo Mini Jack
RS232 In: Yes
RJ45 In: Yes
WiFi: Yes
Bluetooth: Yes

ALIMENTAÇÃO

Power Supply: AC100-240V 50/60Hz
Power Consumption (On Mode, W): 1612.93W(100-240V), 1537.91W(220-240V), OPS(16V/4.5A)
Power Consumption (Sleep Mode, W):0.5W

DIMENSÃO

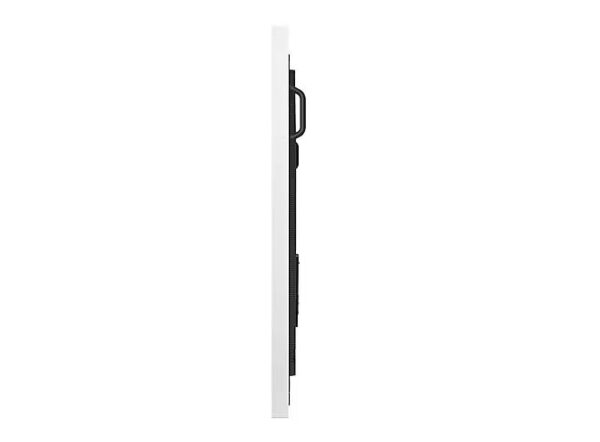

Set Dimension (WxHxD, mm): 1724 x 1026.3 x 89 mm
Package Dimension (WxHxD, mm): 1905 x 1189 x 287 mm

PESO

Set Weight: 59.3 kg
Package Weight: 72.2 kg

CONDIÇÕES DE OPERAÇÃO

Temperature: 0℃~40℃
Humidity: 10 ~ 80%, non-condensing

ESPECIFICAÇÕES MECÂNICAS

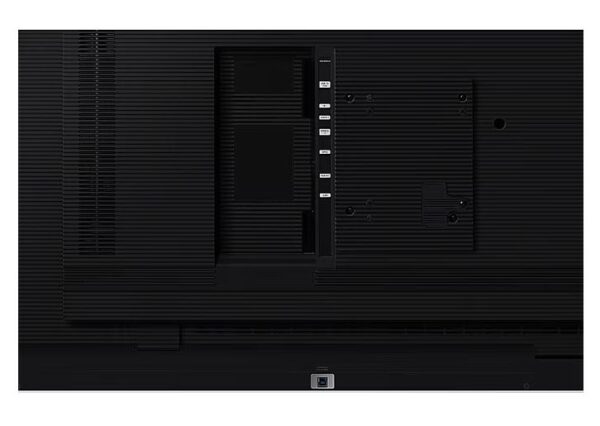

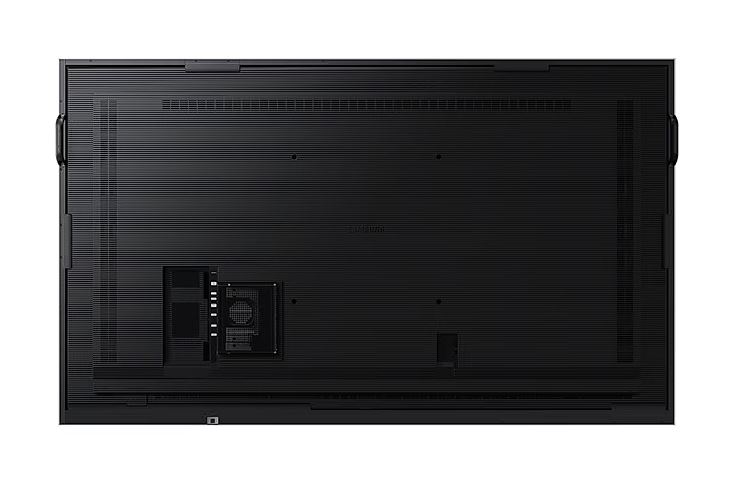

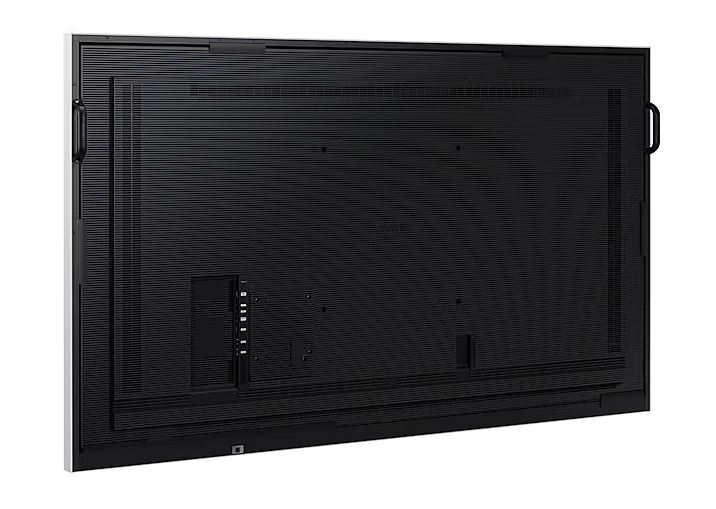

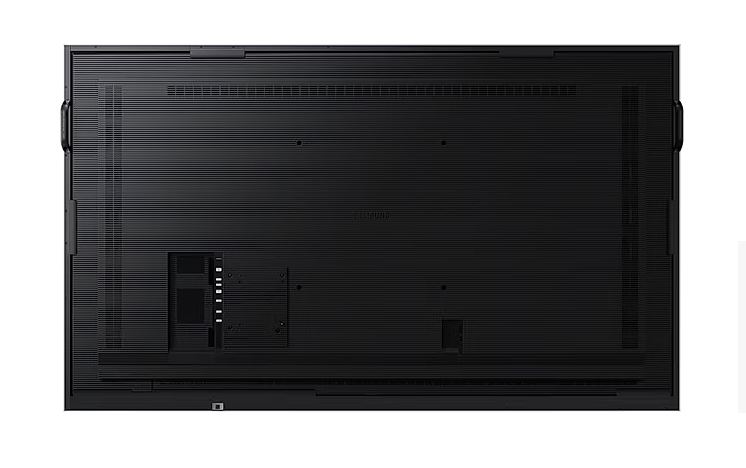

VESA Mount (mm): 400 x 400 mm
Bezel Width (mm): 20.4mm(T/LR), 44.7mm(B)
Frame Material: Metal(Aluminum)

CARACTERÍSTICAS OPCIONAIS

Touch: Yes
Mount: Yes(Model Name : WMN6575SF)

SoC

OS Version: Tizen 6.5
Flash Memory Size: 32GB

TOQUE

Touch Technology: IR

CERTIFICAÇÕES E CONFORMIDADES

EMC: Class A FCC (USA) Part 15, Subpart B KCC/EK (Korea) Tuner : KN32 / KN35 　 Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015　EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016 　 CCC(China) GB/T9254-2008 GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS) C-Tick (Australia) AS/NZS CISPR32:2015　 GOST(Russia/CIS) ROCT CISPR 24-2013 ROCT CISPR 22:2005

Safety: CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ): PSB+IEC60950-1NOM (Mexico ): NOM-001-SCFI-1993IRAM (Argentina ): IRAM+IEC60950-1SASO (Saudi Arabia ): SASO+IEC60950-1BIS(India): IEC60950-1 / IS13252NOM (Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless: NOM-019-SCFI-1998KC (Korea): K 60950-1EAC (Russia): EAC+IEC60950-1INMETRO (Brazil): INMETRO+IEC60950-1BSMI(Taiwan): BSMI+IEC60950-1RCM (Australia): IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950
