ESPECIFICAÇÕES TÉCNICAS
- COMPONENTES
-

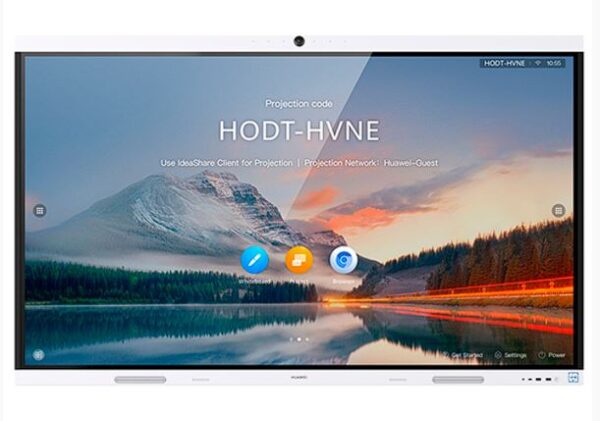

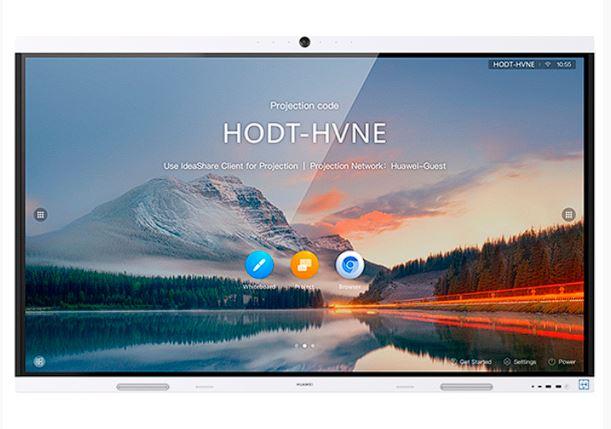

Device x 1: 65-inch
Stylus pens x 2: PET pen tip/anti-skid pen body/magnetic attachment
Cable: Power cable x 1
OPS: Optional (i5/i7)
Rolling stand: Optional (support interface complies with the VESA standard)
Wall mounted bracket: Optional (support interface complies with the VESA standard)
IdeaHub Controller: Optional - ECRÃ
-
Resolution: 4K UHD (3840 x 2160)
Viewing Angle: 178°
Glass Hardness: ≥ 7H
Screen Lamination: Zero-gap bonding
Color Depth: 10-bit (8-bit + FRC)
Backlight Type: D-LED
Number of Touch Points: 20
Screen Refresh Rate: 60 Hz
Aspect Ratio: 16:9 - PROTEÇÃO OCULAR
-
Optical Anti-Blue Light: √
Anti-glare: √
Adaptive Brightness: √
TÜV Rheinland Low Blue Light (Hardware Solution) Certification: √
TÜV Rheinland Eye Comfort Certification: √ - ESCRITA
-
Writing Latency: 25 ms
Precision: ±1mm
Whiteboard Saving Mode: QR code scanning/Email/Local disk/USB flash drive
Intelligent Writing: √ - PROJEÇÃO
-

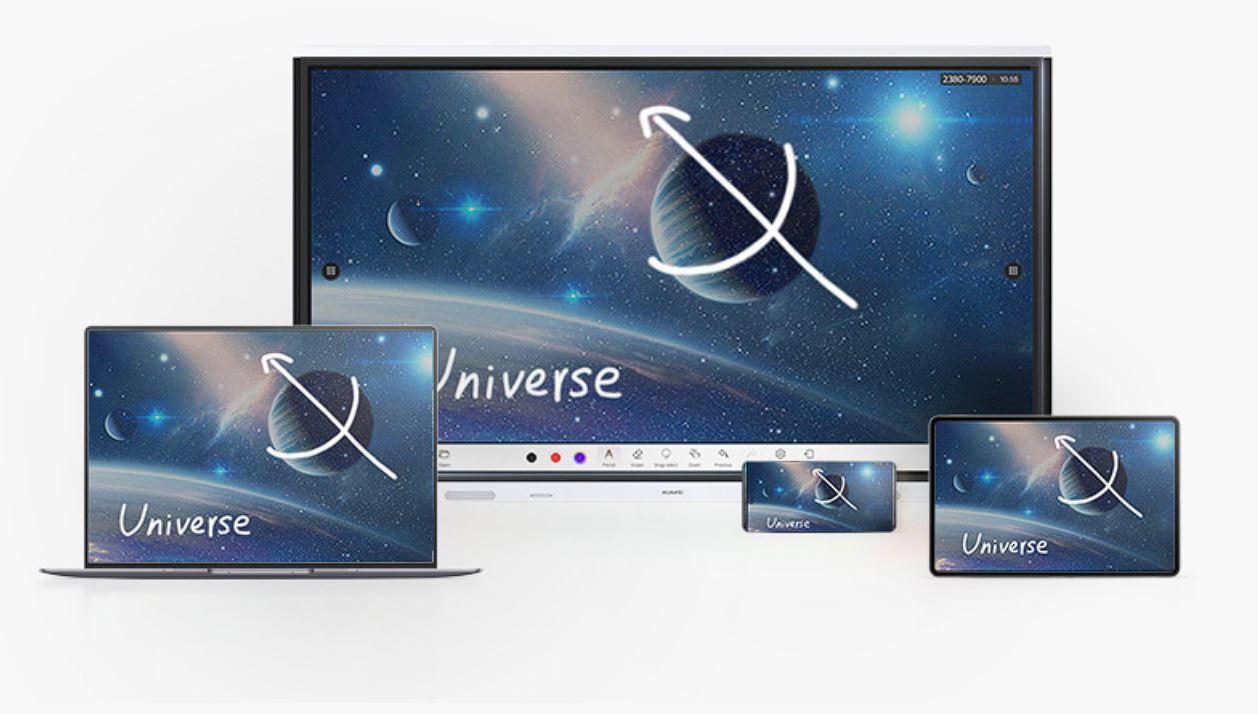

Projection Mode: IdeaShare App, IdeaShare Key, Projection through the drop-down menu (Mobile phone operating systems that support manual projection: EMUI 10.1.0 or later, Magic UI 3.1 or later.), HDMI, Type-C wired projection
Wireless Projection Performance: Up to 4K30
Wired Projection Performance: 4K60
Supported OS: Android/Windows/iOS/macOS
Annotate During Projection: √
Reverse Control: √
- WI-FI
-
Dual-Wi-Fi Module: √
Wi-Fi Frequency: 2.4 GHz/5 GHz - COLUNAS
-
Frequency Domain: 100 Hz–20 kHz
Speaker Unit: 2 x full frequency speaker + 2 x high frequency speaker
Stereo: √ - SISTEMA
-
CPU: 4-core
RAM: 4 GB
Flash: 32 GB*

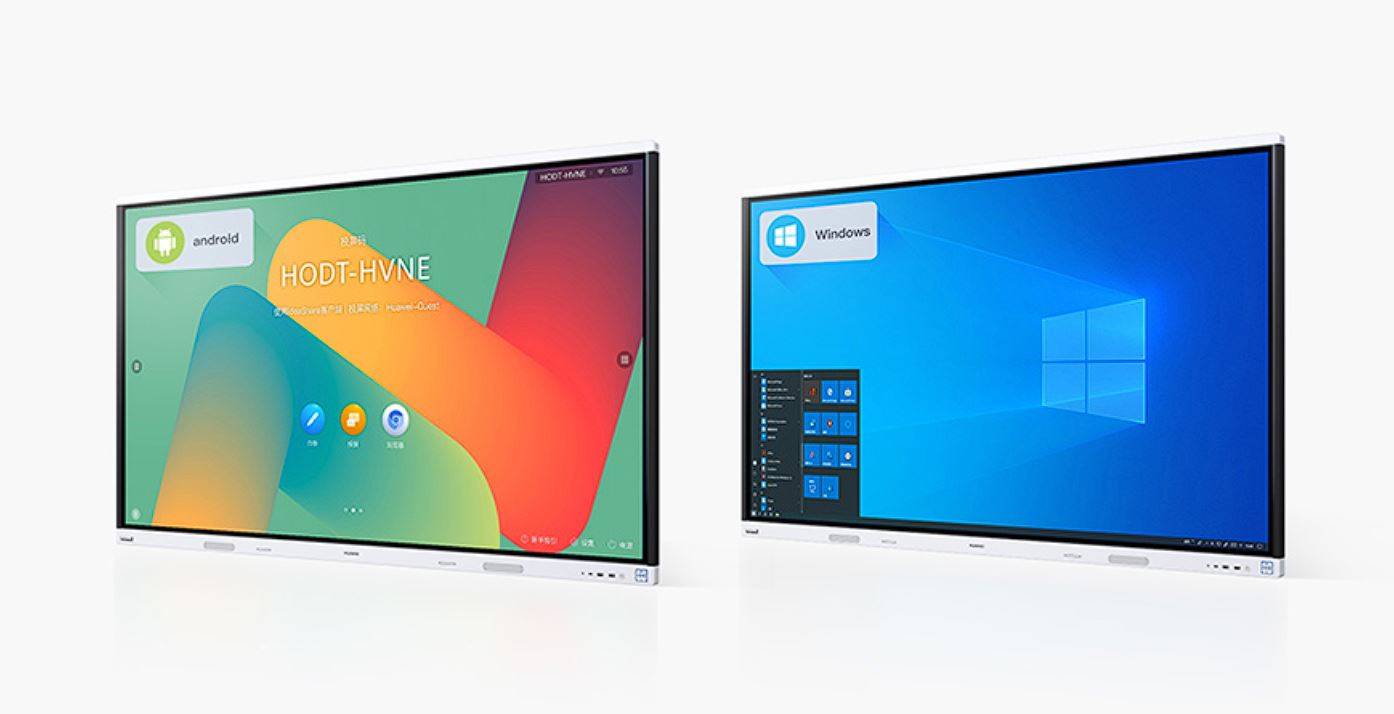

OS: Android 9.0/Windows 10**
**Available storage space will be less than the stated value as pre-installed software takes up a certain amount of space. **To use Windows 10, an OPS plug-in computer is required.
-
INTERFACE
-

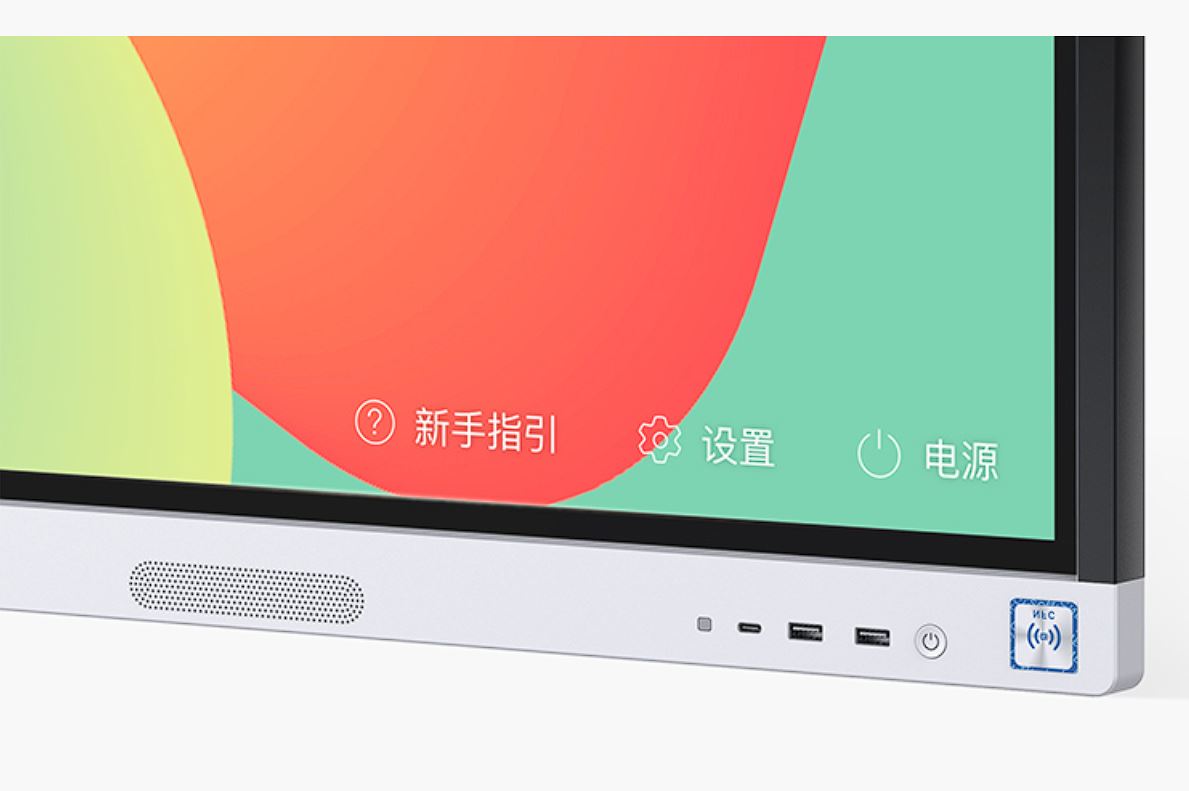

Front-Panel Ports: Type-C x 1, Type-A x 2
Rear-Panel Ports: Type-A x 1, Type-B (reverse control) x 1, HDMI (input) x 2, HDMI (output) x 1, COM port x 1, RJ45 network port x 1, 80-pin OPS port x 1, 3.5 mm (line-in) x 1, 3.5 mm (line-out) x 1
