Ecrã
| Size | 32″ |
| Resolution | 3840×2160 pixels |
| Max. Colors | 1.07B Colors |
| Brightness (Typ.) | 350 nits |
| Viewing Angle (CR=10)(Typ.) |
178˚(H)/178˚(V) |
| Contrast Ratio (Typ.) | 1000:1 |
| Touch Screen | Projected Capacitive Multi Touch Screen |
Sistema
| OS Support | Windows® 8, Windows® 10, Windows® 11 |
Entradas e Saídas
| Input Signal | Audio-in x 1,Dual DVI x 1,DP 1.2 x 1,VGA x 1, 3G SDI x 1,HDMI 1.4 x 1,HDMI 2.0 x 1 |
| Output Signal | DP 1.2 x 1(Multi-Stream Transport), 3G SDI x 1(Loop Through, support 1080P), Audio Out x 1, 5V/ 1A out x x |
| USB Port | USB 2.0 Type B x 1 for Touch Screen |
| Serial Port | RS-232 x 1 |
| GPIO | RJ-11 x 1 |
| Speaker | Built in 5W speaker x 2 |
Condições Mecânicas e Ambientais
| Power Consumption | 55 W typical |
| Operating Temperature | 0°C to 35°C |
| Storage Temperature | -20°C to 60 °C |
| Storage Humidity | 10%~90%@35°C, non-condensing |

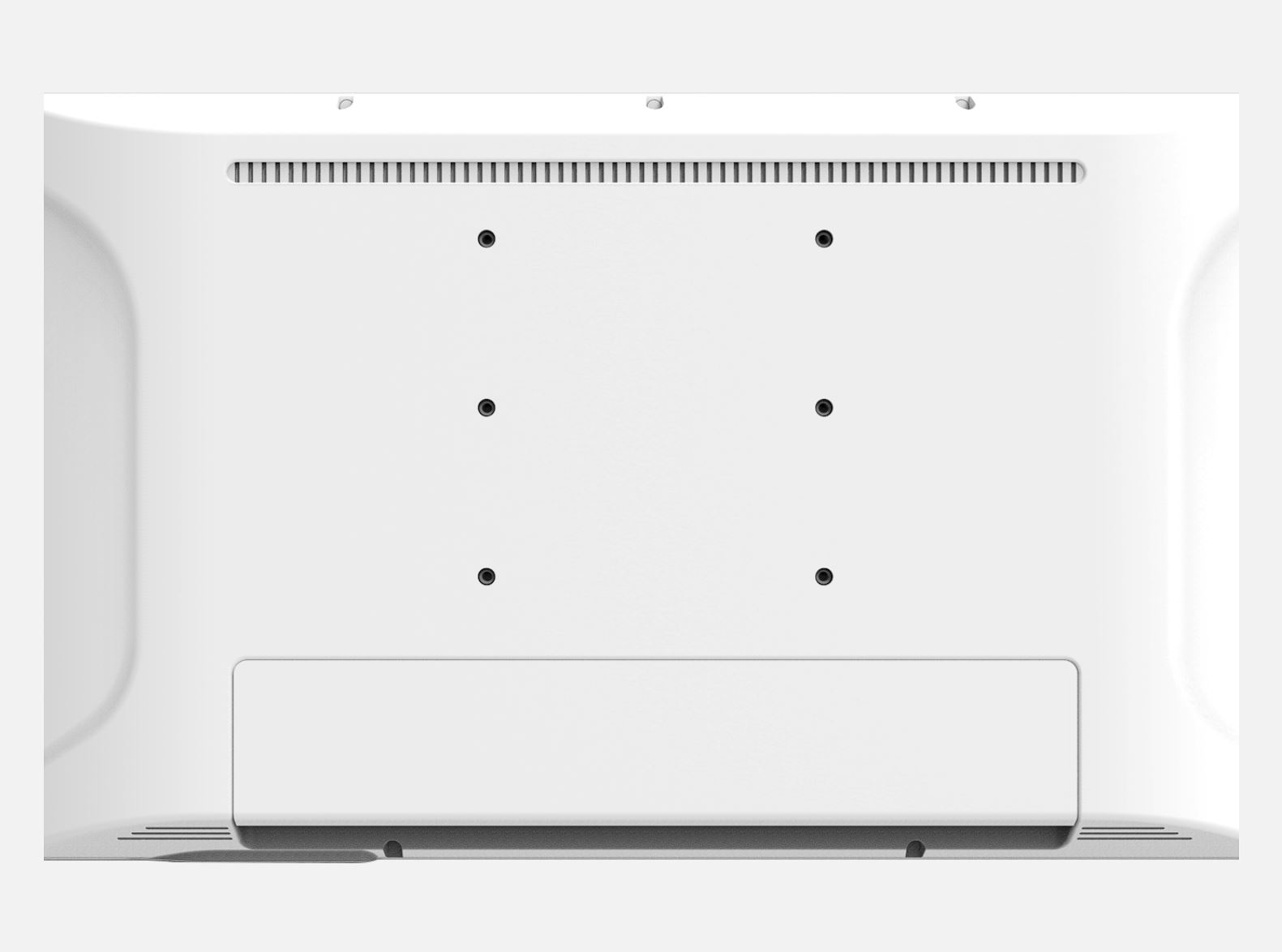

| VESA | 100mm x 200mm and 200mm x 200mm |
| IP rating | Front IP65 |
| Power Requirement | External power adapter, AC IN: 100 ~ 240V, 24V |
| Dimension | 799 x 478 x 63.7 mm |
| Packing Size | 980x260x700mm |
| Gross Weight | 20 Kg |
| Net Weight | 18 Kg |
| Certifications | CE: EN 60601-1-2:2015(V4.0), EN 60601-1:2006/A1:2013/A12:2014 (V3.1) FCC: Part 18 Class B |
