Principais Especificações
| Processor | Intel® 7th/6th Generation Core™ i7/i5/i3 |
| System Memory | Supports Dual Channel DDR4 SODIMM up to 32 GB |
| OS Support | Windows® 7, Windows® 8,Windows®10, Linux® |
| Storage Disk Drive | 2.5” SATA SSD x 1 |

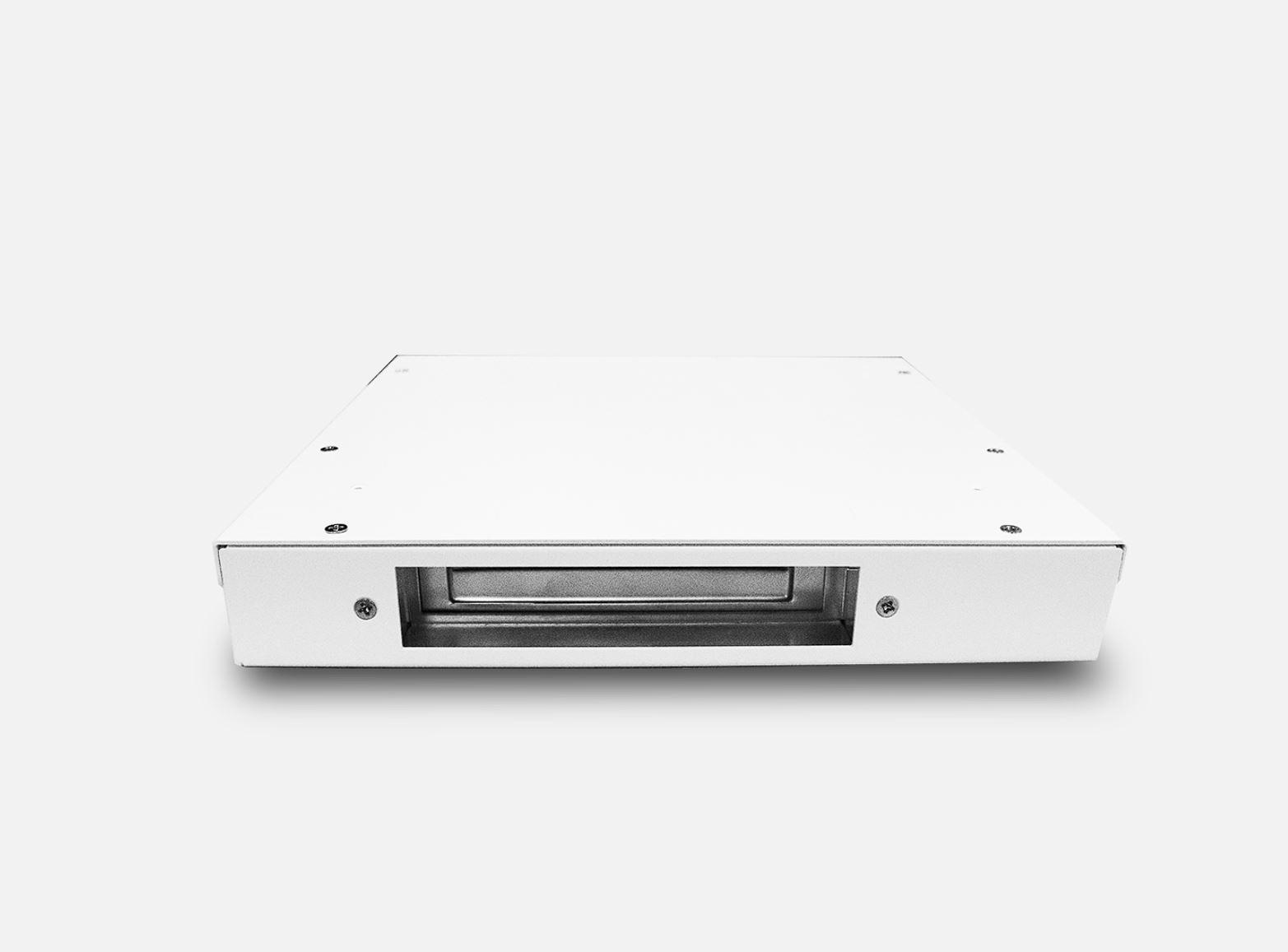

| Extension area | PCI-Express [x1] x 1 |
| Security | TPM 2.0 |
| Power Requirement | DC 12V |

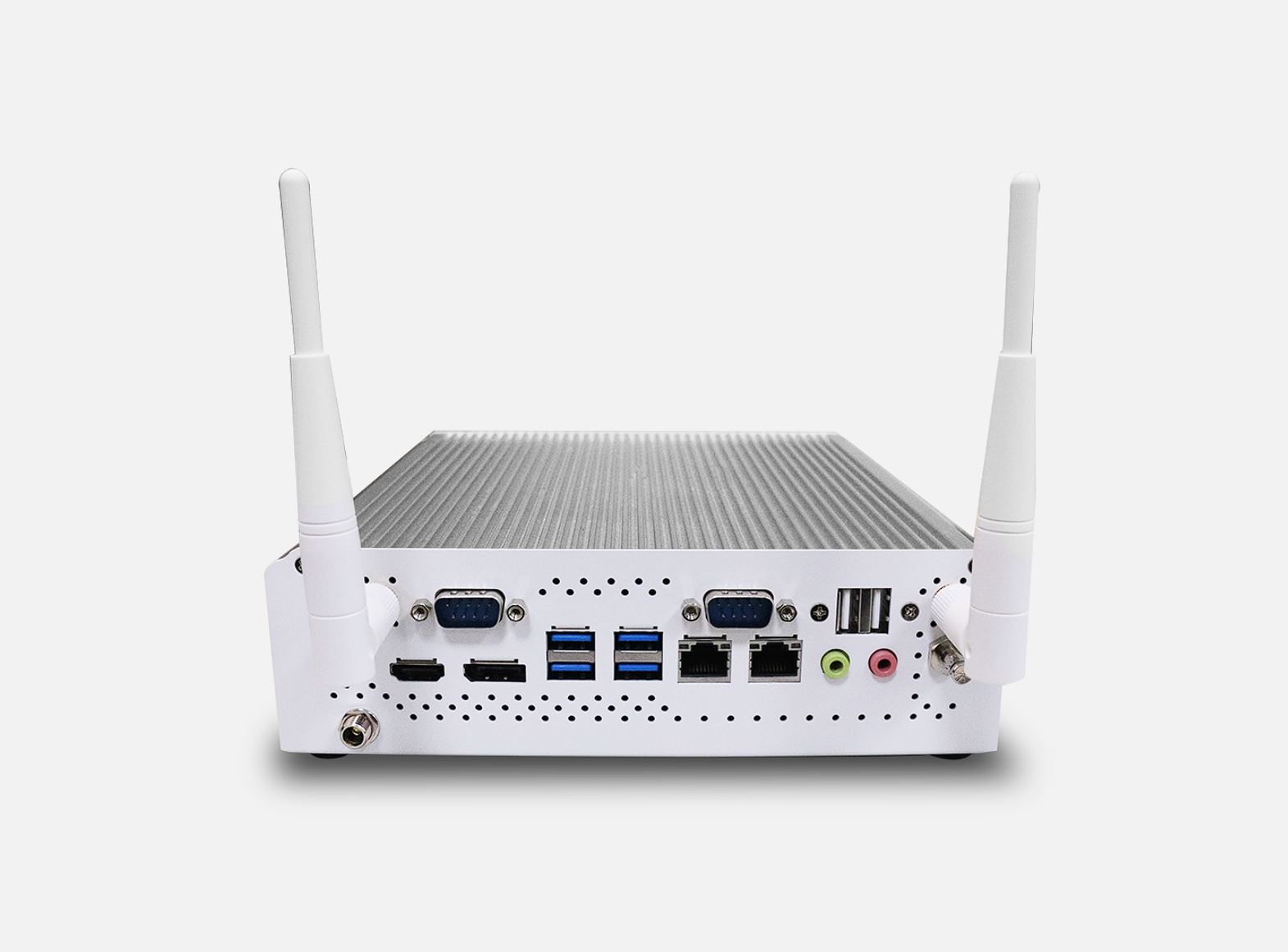

Entradas e Saídas
| USB | USB 3.0 x 4 , USB 2.0 x2 |
| Serial Port | RS232 x 2 |
| Ethernet | Gigabit LAN x 2 |
| Video Out | Display Port x 1 (Support up to 1920 x 1200 @60 Hz) , HDMI 1.4 x 1 |
| Audio | Mic-in, Line-out |
Condições Mecânicas e Ambientais
| Operating Temperature | 0°C ~ 40°C(32°F ~ 104°F) |
| Storage Temperature | -20°C ~ 60°C(-4°F ~ 140°F) |
| Dimension | 197 x 197 x 59.5 mm for main layer 197 x 197 x 44 mm for extension layers |
| Package Size | 300 x 280 x 95 mm |
| Gross weight | 3.3 kg (7.25 lb) in the single layer, 4.0 kg (7.25 lb) in two layer |
| Net Weight | 2.5 kg in the single layer, 3.7 kg in two layers |
| Certifications | CE : EN 60601-1-2: 2015 + A1: 2021 ( V4.1), EN 60601-1: 2007 + A1:2013 +A2:2021 ( V3.2) EN 55032:2015/A1:2020 EN55035:2017/A11:2020( ITE) IEC62368-1:2020+A11:2020 ( ITE) FCC : Part 15B/ Part 18 UL : ANSI AAMI ES60601-1:2005/A1:2012/A2:2021( V3.2) cUL : CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020,MOD) ( V3.2) |
